Plan 1066-51

Photographs may show modified designs.
Plan 1066-51

Key Specs


3355
sq ft

4
Beds

3
Baths

2
Floors

1
Garages

Plan Description


Northwest and contemporary style single family home with 2 levels and unique rear patio
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

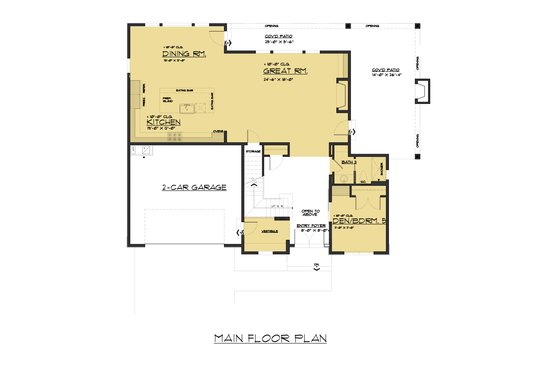

Floor Plan - Main Floor Plan

Reverse

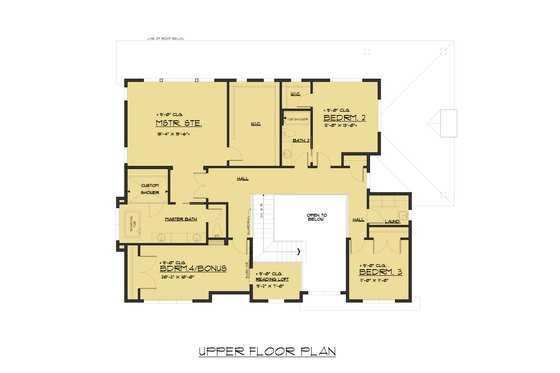

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 2
Garages: 1

Dimension

Depth : 46' 6"
Height : 28' 7"
Width : 59'

Area

Total : 3355 sq/ft
Garage : 450 sq/ft
Main Floor : 1592 sq/ft
Patios : 512 sq/ft
Porch : 35 sq/ft
Upper Floor : 1763 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Entry foyer ceiling open to above
Garage Ceiling : 11' 6"
Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 4/12
Roof Framing : Trusses
Roof Load : 25 PSF
Roof Type : Hip

Exterior Wall Framing

Exterior Wall Finish : Panels, Siding, and Stone
Framing : 2X6
Insulation : R21

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Mud Room
Upstairs Laundry

Garage Features

Front Entry Garage

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

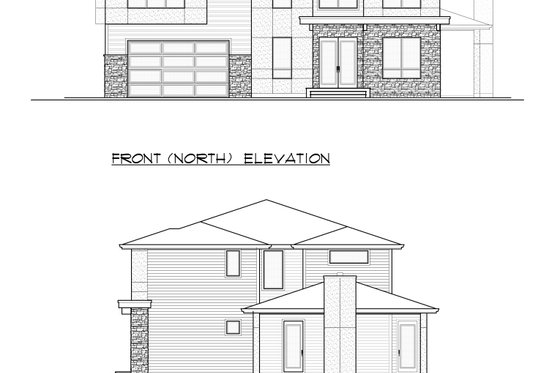

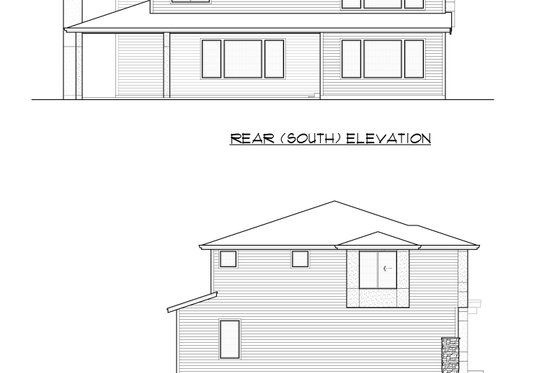

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1329.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1434.00
5 printed plan sets mailed to you.

8 Copy Set

$1539.00
8 printed plan sets mailed to you.

Reproducible Set

$1539.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$3750.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1224.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$300.00
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$125.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$350.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Right-Reading Reverse

$350.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).

Other Plans By This Designer

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
