Plan Description


Here's a sleek home design for a hillside lot. On the main level, the open layout ensures excellent circulation between the great room, the island kitchen, and the dining room, with easy access to the covered deck. The master suite also steps out to the deck from its spacious bedroom. A second bedroom and bath accommodate visitors with ease. Downstairs, a wet bar and rec room create a fun hangout, with three bedrooms and another bath available to hold family and friends.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Lower Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

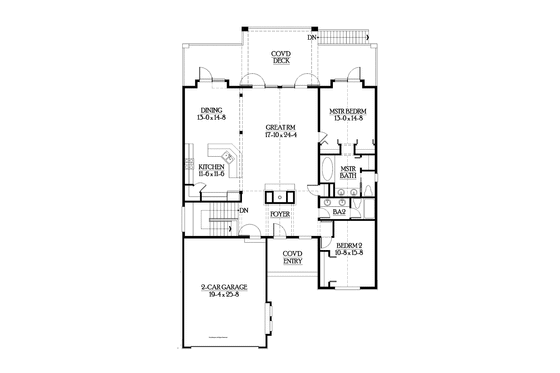

Floor Plan - Main Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 3
Stories: 1
Garages: 2

Dimension

Depth : 76'
Height : 21'
Width : 46'

Area

Total : 3371 sq/ft
Basement Living: 1656 sq/ft
First Floor: 1715 sq/ft
Garage: 528 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Composition

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6

Bedroom Features

Fireplace

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Loft
Open Floor Plan
Vaulted / Cathedral Ceilings

Outdoor Spaces

Balcony
Courtyard
Covered Rear Porch
Deck

Rooms

Bedroom 2:

167 sq/ft width 10' 8" x depth 15' 8"

Bedroom 3:

173 sq/ft width 12' 8" x depth 13' 8"

Bedroom 4:

149 sq/ft width 11' 10" x depth 12' 8"

Bedroom 5:

157 sq/ft width 12' 6" x depth 12' 7"

Dining Room:

190 sq/ft width 13' x depth 14' 8"

Garage:

496 sq/ft width 19' 4" x depth 25' 8"

Great Room:

433 sq/ft width 17' 10" x depth 24' 4"

Kitchen:

132 sq/ft width 11' 6" x depth 11' 6"

Master Bedroom:

190 sq/ft width 13' x depth 14' 8"

Recreation Room:

480 sq/ft width 18' x depth 26' 8"

Wet Bar:

67 sq/ft width 7' 6" x depth 9'
