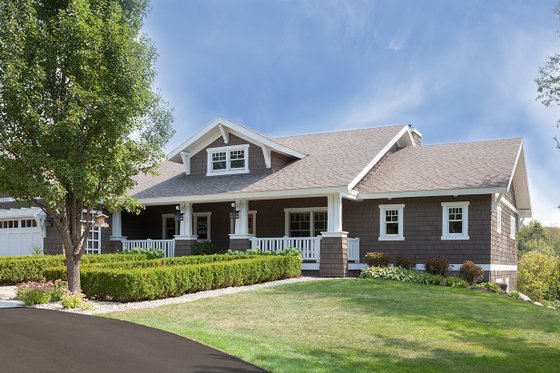

This has captivating unique exterior details, including a charming trellis over the garage doors and an inviting dormer window that brings loads of light into the foyer. True to the Craftsman spirit, its relatively small, efficient design still offers luxury main floor amenities including a master suite, office, open living/dining/kitchen space with walk-in pantry, mudroom, laundry room and four season sun porch. A lower level encompasses two additional bedrooms, full bathroom and plenty of storage.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

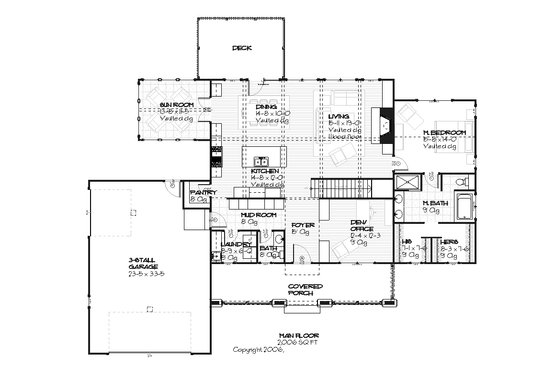

Floor Plan - Main Floor

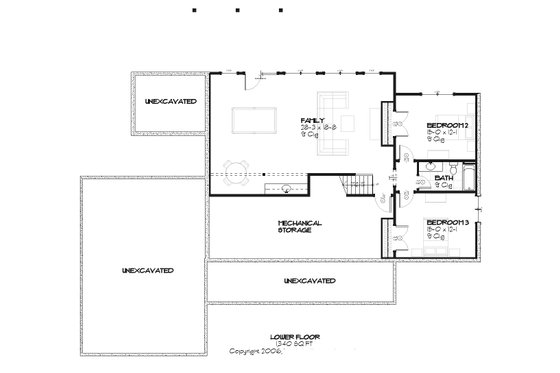

Floor Plan - Lower Floor
Full Specs & Features
Depth : 54'
Height : 21' 2"
Lower Floor : 1400 sq/ft
Main Floor : 1992 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Lower Ceiling : 9'
Main Ceiling : 9'
Primary Pitch : 6/12
Roof Framing : truss
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Unfinished Future Space
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
Grill Deck Sundeck
Economical To Build
Energy Efficient Features
What's included in this plan set
See a sample plan set
*See important information before purchasing
Title Sheet. This page includes a color rendering of your home and an overview of the floor plan.
Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

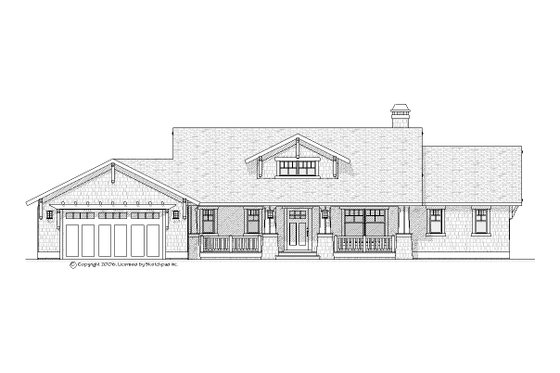

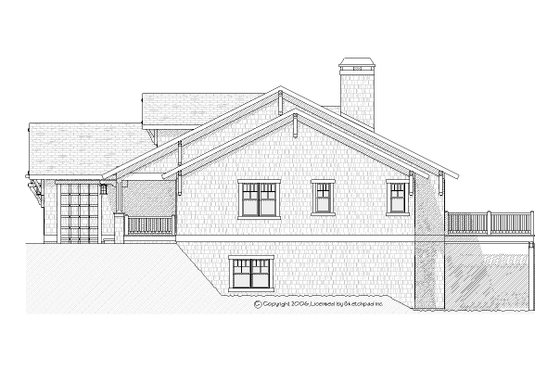

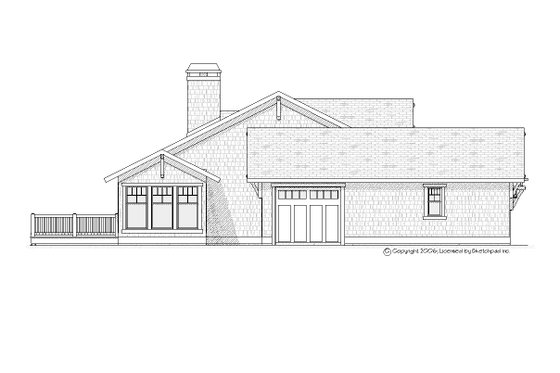

Exterior Elevations. Front, rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material callouts, eave detail, roof pitch and foundation construction.
Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
5 Copy Set
5 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set
8 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
