Plan 408-105

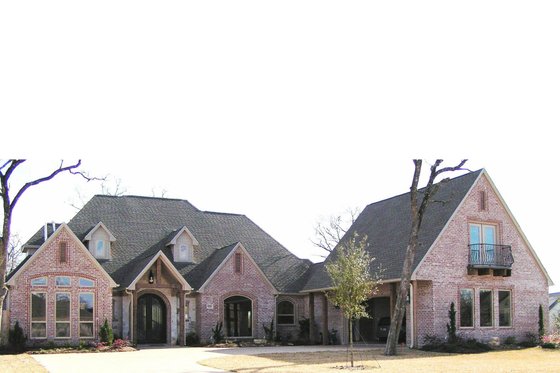

Photographs may show modified designs.
Plan 408-105

Key Specs


3420
sq ft

4
Beds

4.5
Baths

2
Floors

2
Garages

Plan Description


Luxury spaces within a Country French exterior/interior - oversized M. Closet
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

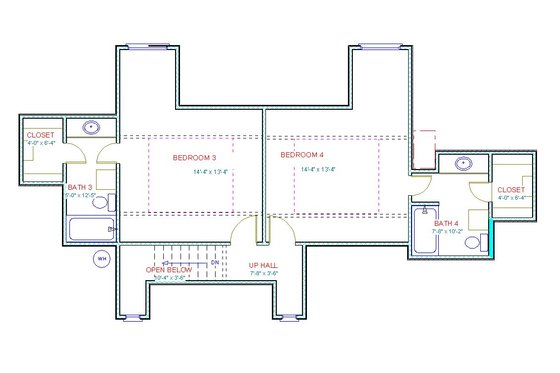

Floor Plan - Upper Floor Plan

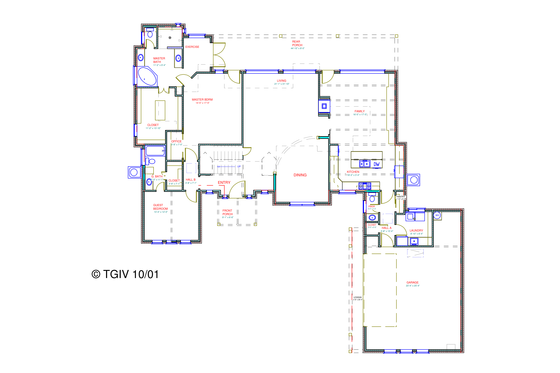

Floor Plan - Main Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 2

Dimension

Depth : 82'
Height : 30'
Width : 82'

Area

Total : 3420 sq/ft
Decks : 0 sq/ft
Garage : 693 sq/ft
Main Floor : 2672 sq/ft
Porch : 563 sq/ft
Upper Floor : 748 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Special ceilings throughout
Garage Ceiling : 10'
Main Ceiling : 10'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 14:12
Roof Framing : 2x6
Roof Load : 32 psf
Roof Type : Lumber
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Masonry + Hardiplank
Framing : 2x4 2x6
Insulation : Full cavity + foil faced foam board

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Mud Room
Storage Area
Workshop

Garage Features

Oversized Garage
Side Entry Garage
Split Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch

More

Economical To Build
Empty Nester
Suited For Vacation Home
Unusual Shape
Wheelchair Adaptable

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1200.00
5 printed plan sets mailed to you.

8 Copy Set

$1500.00
8 printed plan sets mailed to you.
Foundation Options

Pier

$0.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
