Plan 25-4562

Photographs may show modified designs.
Plan 25-4562

Plan Description


This prestigious multigenerational house will catch the eye with its gables, its cedar shingles and its huge veranda. The home is 62 feet wide by 49 feet deep and provides a 3,455 square feet living area. The ground floor is divided into two distinct sections and covers 2,037 square feet. One of the sections includes a living room, a dining room, a kitchen, a bathroom as well as a bedroom. The other consists of a reading area, a powder room, a large kitchen with breakfast nook, a living room and a dining room divided by a see-through fireplace. The second floor has 1,418 square feet of living space and consists of a family bathroom, and four bedrooms including a master bedroom with large windows, two walk-in closets and a huge private bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

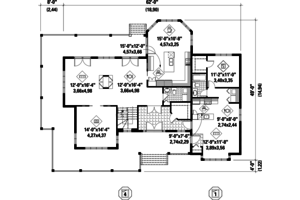

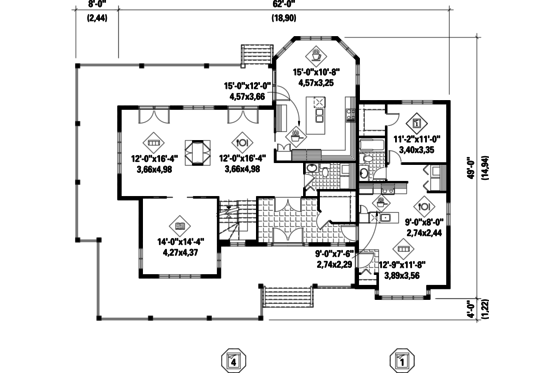

Floor Plan - Main Floor Plan

Reverse

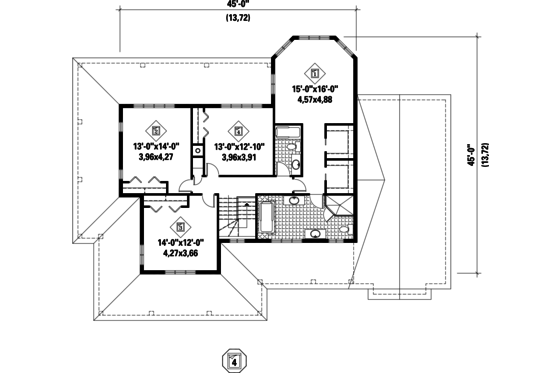

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 3
Stories: 2
Garages: 0

Dimension

Depth : 49'
Height : 41' 8"
Width : 62'

Area

Total : 3455 sq/ft
Basement : 0 sq/ft
Garage : 0 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 2037 sq/ft
Upper Floor : 1418 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 12/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 12/12

Exterior Wall Framing

Exterior Wall Finish : Shingle Siding
Framing : Wood - 2 x 6
Insulation : R20

What's included in this plan set


See a sample plan set
  • Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
  • Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
  • Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
  • Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
  • *See important information before purchasing

    Pricing


    Plan Options

    5 Copy Set

    $1535.00
    5 printed plan sets mailed to you.

    8 Copy Set

    $1580.00
    8 printed plan sets mailed to you.

    PDF Set

    Best Value!
    $1620.00
    PDF plan sets are best for fast electronic delivery and inexpensive local printing.

    CAD Set

    $2195.00
    For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

    Reproducible Set

    $3070.00
    For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
    Foundation Options

    Basement

    $0.00
    Ideal for level lot, lower level of home partially or fully underground.

    *Options with a fee may take time to prepare. Please call to confirm.

    Additional Options:

    Right-Reading Reverse

    $150.00
    Choose this option to reverse your plans and to have the text and dimensions readable.

    Additional Construction Sets

    $50.00
    Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

    Audio Video Design

    $100.00
    Receive an overlay sheet with suggested placement of audio and video components.

    Construction Guide

    $39.00
    Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

    Lighting Design

    $200.00
    Receive an overlay sheet with suggested placement of lighting fixtures.

    Material List

    $165.00
    A list of building supplies needed to construct the infrastructure of your new house.

    Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
