Plan 84-594

Photographs may show modified designs.
Plan 84-594

Plan Description


Floor plan is perfect for a growing family who likes to entertain. The master suite has a beautiful tier/vault ceiling with a large master bath boasting a dome ceiling. The bedrooms with 2 baths & large closets give each child (or guest) ample space. Large kitchen with island & walk-in pantry are open to the family room which have built-in book cases surrounding the fireplace. Enjoy movies in the media room which has sound insulated walls with a 9' tier hip ceiling.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

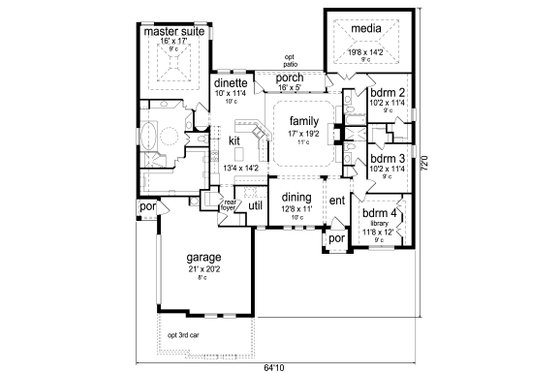

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3
Stories: 1
Garages: 2

Dimension

Depth : 72'
Height : 23' 2"
Width : 64' 10"

Area

Total : 2768 sq/ft
First Floor: 2768 sq/ft
Garage: 554 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 9' Tier in Master 9' Tier in Bdrm 4 11' Tier in Family 9' Tier Hip in Media
Garage Ceiling : 8'
Main Ceiling : 10'

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : gable
Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : brick, stone
Framing : 2x4

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

width 10' 2" x depth 11' 4"

Bedroom 3:

width 10' 2" x depth 11' 4"

Bedroom 4:

width 11' 8" x depth 12'

Dinette:

width 10' x depth 11' 4"

Dining Room:

width 12' 8" x depth 11'

Family Room:

width 17' x depth 19' 2"

Front Porch:

60 sq/ft

Garage:

554 sq/ft width 21' x depth 20' 2"

Kitchen:

width 13' 4" x depth 14' 2"

Master Suite:

width 16' x depth 17'

Media Room:

width 19' 8" x depth 14' 2"

Rear Porch:

80 sq/ft width 16' x depth 5'

What's included in this plan set


See a sample plan set
  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

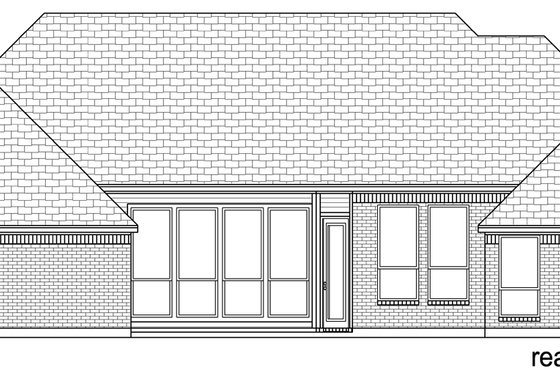

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$885.00
5 printed plan sets mailed to you.

8 Copy Set

$960.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1075.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1130.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1865.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$825.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$175.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$60.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
