Plan 11-233

Photographs may show modified designs.
Plan 11-233

Key Specs


3464
sq ft

5
Beds

2.5
Baths

2
Floors

3
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

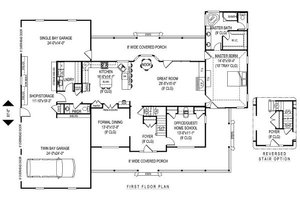

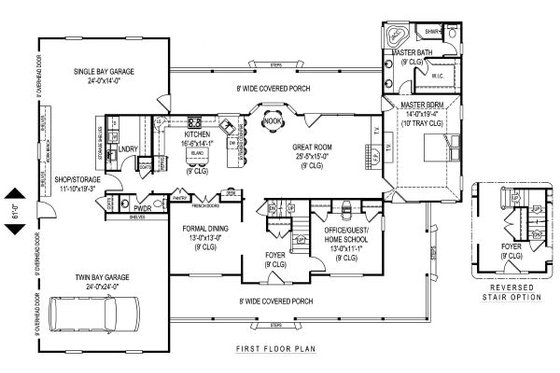

Floor Plan - Main Floor Plan

Reverse

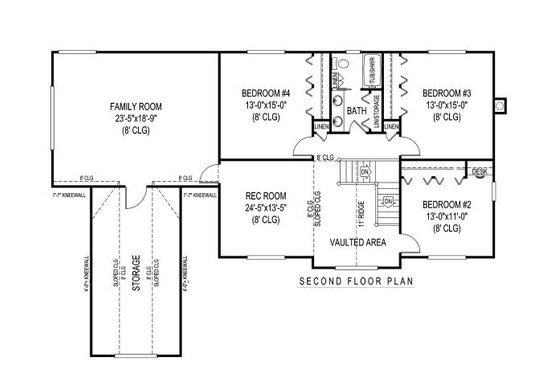

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 2.5
Stories: 2
Garages: 3

Dimension

Depth : 61'
Height : 30'
Width : 78'

Area

Total : 3464 sq/ft
First Floor: 1874 sq/ft height 9'
Garage: 1160 sq/ft
Porch: 762 sq/ft
Second Floor: 1590 sq/ft height 8'
Storage: 313 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'
Upper Ceiling Ft : 8'

Roof

Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : 2"x4"

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Storage Area
Unfinished Future Space
Workshop

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Wrap Around Porch

Rooms

Bedroom 2:

143 sq/ft width 13' x depth 11'

Bedroom 3:

195 sq/ft width 13' x depth 15'

Bedroom 4:

195 sq/ft width 13' x depth 15'

Dining Room:

169 sq/ft width 13' x depth 13'

Family Room:

439 sq/ft width 23' 5" x depth 18' 9"

Garage:

576 sq/ft width 24' x depth 24'

Garage Two:

336 sq/ft width 24' x depth 14'

Great Room:

81 sq/ft width 5' 5" x depth 15'

Kitchen:

232 sq/ft width 16' 6" x depth 14' 1"

Master Bedroom:

270 sq/ft width 14' x depth 19' 4"

Office:

144 sq/ft width 13' x depth 11' 1"

Recreation Room:

327 sq/ft width 24' 5" x depth 13' 5"

Shop:

227 sq/ft width 11' 10" x depth 19' 3"

What's included in this plan set


See a sample plan set
  • 1/4" Scale Foundation Plans. All foundation types included with sets of house plans.
  • 1/4" Scale Floor Plans. Include Electrical Schematics (placement of outlets, fixtures, switches, etc.)
  • Front Rendering (as shown on site). 1/4" Scale Front Elevation. Sides and Rear Elevations at 1/8" Scale. Includes 1/8" Scale Roof Plan.
  • 1/2" Scale Full Stair Section (if applicable).
  • 1/2" Scale Fireplace Details and Sections (if applicable).
  • 1/2" Scale Full Cabinet Elevations.
  • 1/4" Scale Full Cross Sections (3 to 5 included depending on house).
  • 1/2" Scale Full Foundation Sections.
  • Full Wall Section detailing all components.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1300.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

8 Copy Set

$1700.00
8 printed plan sets mailed to you.

CAD Set

$2400.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$300.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$150.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$1000.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
