This sprawling estate has it all. The foyer welcomes you into the formal living room with open stair. On one side is the master suite with large walk in closet and the other hosts the kitchen, dining, sitting and breakfast nook. A front private office is great for work from home, with entrance right near the foyer. This plan is unique with two separate garages perfect for keeping the cars separate from storage. Upstairs you will find two bedrooms which share a bathroom and study area perfect for the kid’s homework. The optional lower level has walkout-out ability and is equipped with exercise, game room, wine cellar, two additional bedrooms, family room, and home theatre.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

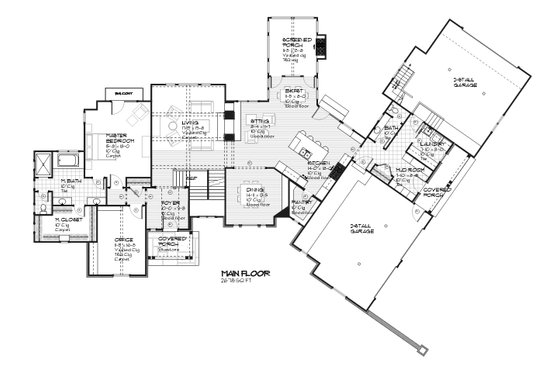

Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Full Specs & Features
Main Floor : 2678 sq/ft
Upper Floor : 881 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Main Floor Master Bedroom
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Unfinished Future Space
Rear Entry Garage
Side Entry Garage
Suited For Corner Lot
Suited For Sloping Lot
Covered Front Porch
Grill Deck Sundeck
Jack & Jill Bath
