Plan 417-399

Photographs may show modified designs.
Plan 417-399

Key Specs


3589
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

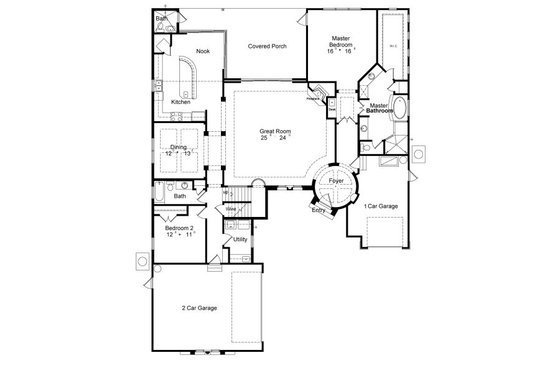

Floor Plan - Main Floor Plan

Reverse

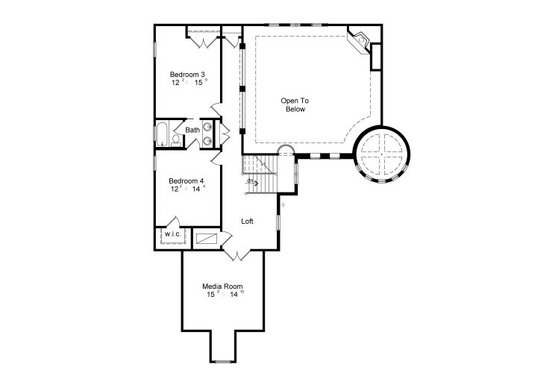

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 3

Dimension

Depth : 80' 4"
Height : 26' 6"
Width : 60'

Area

Total : 3589 sq/ft
First Floor: 2522 sq/ft
Garage: 529 sq/ft
Second Floor: 1067 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Concrete block

Rooms

Bedroom 2:

132 sq/ft width 12' x depth 11'

Bedroom 3:

174 sq/ft width 12' 2" x depth 14' 4"

Bedroom 4:

182 sq/ft width 12' 2" x depth 15'

Dining Room:

156 sq/ft width 12' x depth 13'

Garage:

303 sq/ft width 14' x depth 21' 8"

Garage Two:

503 sq/ft width 25' 2" x depth 20'

Great Room:

582 sq/ft width 25' 6" x depth 22' 10"

Kitchen:

174 sq/ft width 12' 2" x depth 14' 4"

Master Bathroom:

258 sq/ft width 11' 8" x depth 22' 2"

Master Bedroom:

266 sq/ft width 16' x depth 16' 8"

Media Room:

width 15' x depth 14' 10"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1100.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$1375.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1375.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$2750.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$750.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
