Plan 48-741

Key Specs

3662
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

Plan Description

Turn your dreams into a livable reality with this majestic, European style home. First impressions present the foyer as a grand entry; two stories sun-lit by clerestory windows framed by the formal dining and living rooms and accented with column doorways. A dramatic, twin ascent staircase precedes the family room, made cozy with a fireplace and built-ins. Open to this casual, family living area is the gourmet kitchen and breathtaking, two-story breakfast nook. The kitchen is equipped with a cook-top island, considerable cabinet space, planning desk and a large butler's pantry to the dining room. A home office with private, outside entry completes the main floor. Upstairs, the impressive master suite features a huge walk-in closet and a spa-style bath. Three family bedrooms share a large hall bath.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

Floor Plan - Other Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

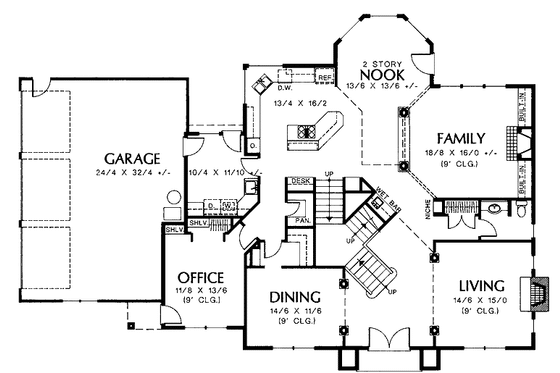

Floor Plan - Main Floor

Reverse

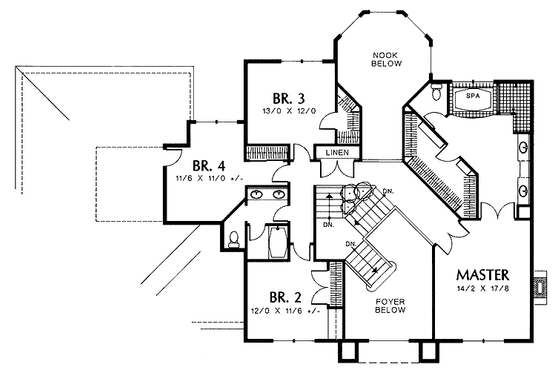

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 2.5

Stories: 2

Garages: 3

Dimension

Depth : 52' 4"

Height : 37'

Width : 76'

Area

Total : 3662 sq/ft

First Floor: 2150 sq/ft

Second Floor: 1512 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Rooms

Bedroom 2:

138 sq/ft width 12' x depth 11' 6"

Bedroom 3:

156 sq/ft width 13' x depth 12'

Bedroom 4:

172 sq/ft width 11' 6" x depth 15'

Dining Room:

166 sq/ft width 14' 6" x depth 11' 6"

Family Room:

280 sq/ft width 18' 8" x depth 15'

Garage:

786 sq/ft width 24' 4" x depth 32' 4"

Kitchen:

202 sq/ft width 13' 4" x depth 15' 2"

Living Room:

217 sq/ft width 14' 6" x depth 15'

Master Bedroom:

250 sq/ft width 14' 2" x depth 17' 8"

Nook:

182 sq/ft width 13' 6" x depth 13' 6"

Office:

157 sq/ft width 11' 8" x depth 13' 6"

What's included in this plan set

See a sample plan set

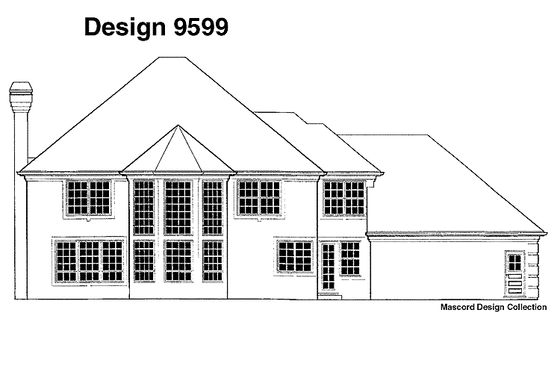

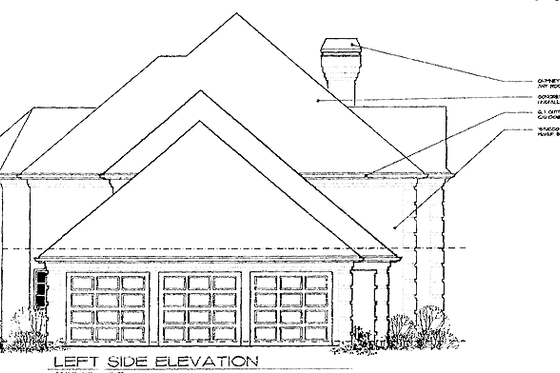

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
