Plan 413-813

Photographs may show modified designs.
Plan 413-813

Key Specs


3682
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

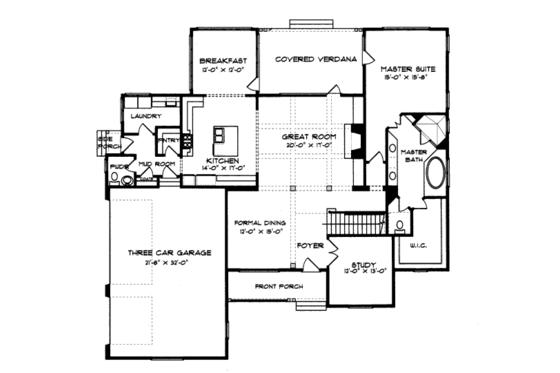

Floor Plan - Main Floor Plan

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 3

Dimension

Depth : 62' 6"
Height : 35' 5"
Width : 64' 6"

Area

Total : 3682 sq/ft
Bonus: 317 sq/ft
First Floor: 2198 sq/ft height 10'
Garage: 741 sq/ft
Second Floor: 1484 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Shingle
Framing : 2"x4"

Rooms

Dining Room:

180 sq/ft width 12' x depth 15'

Garage:

693 sq/ft width 21' 8" x depth 32'

Kitchen:

238 sq/ft width 14' x depth 17'

Master Suite:

235 sq/ft width 15' x depth 15' 8"

Study:

156 sq/ft width 12' x depth 13'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

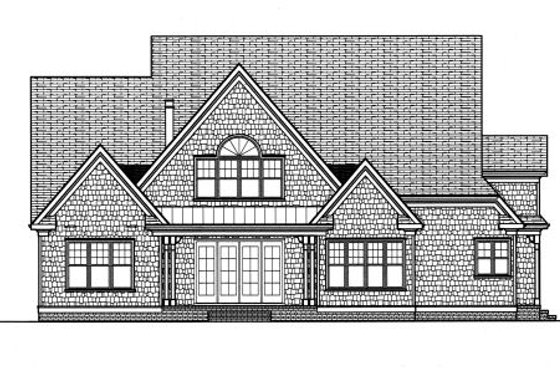

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
