Plan Description

This bungalow design floor plan is 3728 sq ft and has 5 bedrooms and has 4 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

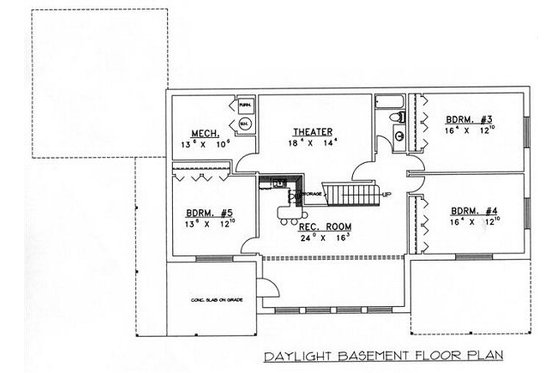

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

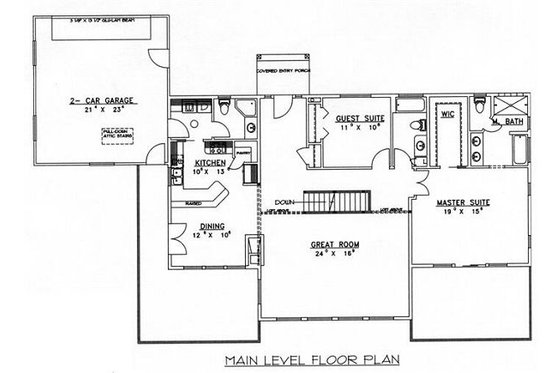

Floor Plan - Main Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 4

Stories: 2

Garages: 2

Dimension

Depth : 50'

Height : 15' 10"

Width : 81'

Area

Total : 3728 sq/ft

First Floor: 1864 sq/ft

Garage: 524 sq/ft

Second Floor: 1864 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x6"

Rooms

Bedroom 3:

209 sq/ft width 16' 4" x depth 12' 10"

Bedroom 4:

209 sq/ft width 16' 4" x depth 12' 10"

Bedroom 5:

173 sq/ft width 13' 6" x depth 12' 10"

Dining Room:

131 sq/ft width 12' 6" x depth 10' 6"

Garage:

497 sq/ft width 21' 4" x depth 23' 4"

Great Room:

402 sq/ft width 24' x depth 16' 9"

Guest Bedroom 1:

117 sq/ft width 11' x depth 10' 8"

Kitchen:

143 sq/ft width 10' 6" x depth 13' 8"

Master Bedroom:

294 sq/ft width 19' x depth 15' 6"

Mechanical/Equipment Room:

141 sq/ft width 13' 6" x depth 10' 6"

Recreation Room:

390 sq/ft width 24' x depth 16' 3"

Theatre Room:

262 sq/ft width 18' 4" x depth 14' 4"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

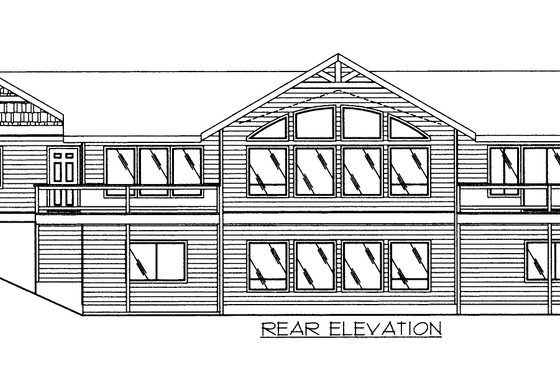

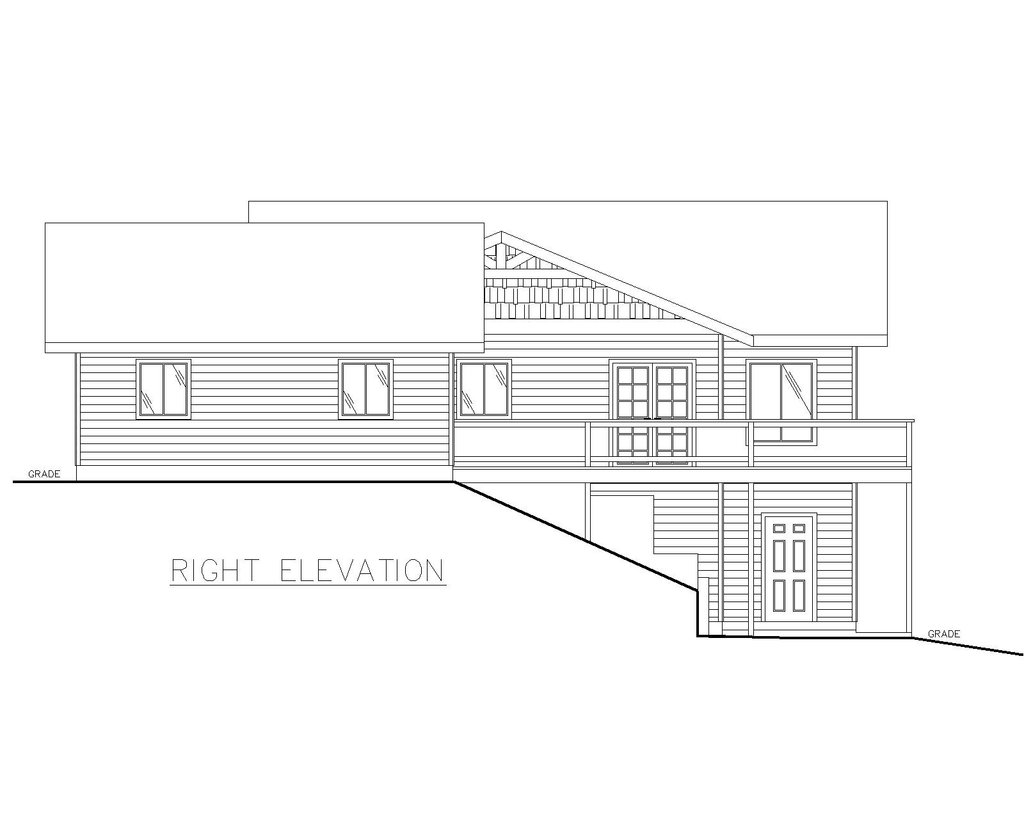

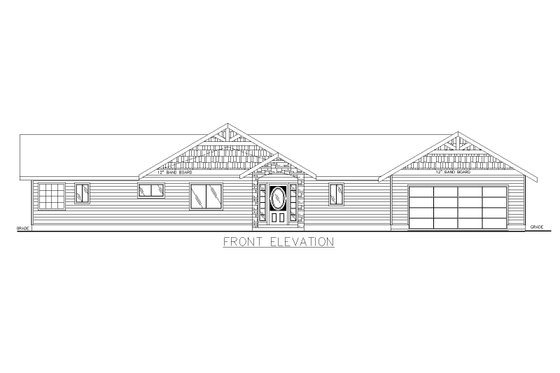

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Options

5 Copy Set

$1525.75

5 printed plan sets mailed to you.

CAD Single Build

$1610.75

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!

$1610.75

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set

$1738.25

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$2205.75

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Daylight Basement

$0.00

Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$63.75

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$170.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
