Plan 119-421

Key Specs

3777
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

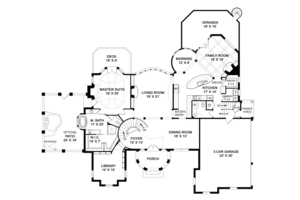

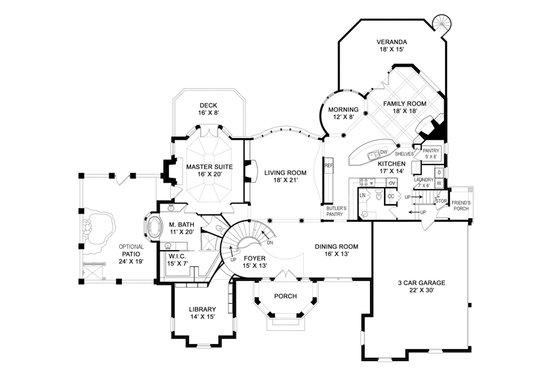

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

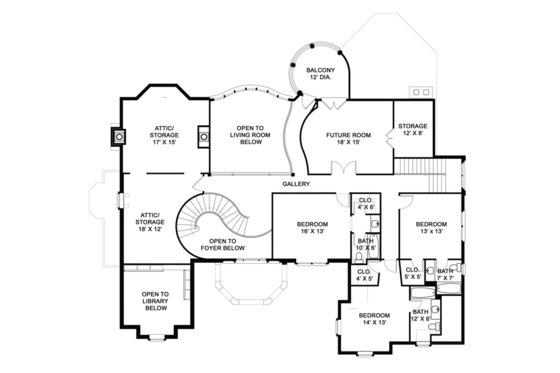

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 4.5

Stories: 2

Garages: 3

Dimension

Depth : 68'

Height : 39' 6"

Width : 78'

Area

Total : 3777 sq/ft

Basement Unfinished: 1380 sq/ft height 9' 10"

Bonus: 355 sq/ft

First Floor: 2565 sq/ft height 10'

Garage: 735 sq/ft

Second Floor: 1212 sq/ft height 9' 6"

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Roof Type : Shingle

Secondary Pitch : 18:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Main Floor Laundry

Open Floor Plan

Storage Area

Unfinished Future Space

Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Deck

Rooms

Attic Storage 1:

width 17' x depth 15'

Attic Storage 2:

width 12' x depth 18'

Balcony:

width 12' x depth 12'

Bath 2:

width 6' x depth 10'

Bath 3:

width 7' x depth 7'

Bath 4:

width 6' x depth 12'

Bedroom 2:

width 16' x depth 13'

Bedroom 2 Closet:

width 6' x depth 4'

Bedroom 3:

width 13' x depth 13'

Bedroom 3 Closet:

width 5' x depth 5'

Bedroom 4:

width 14' x depth 13'

Bedroom 4 Closet:

width 4' x depth 5'

Bonus/Future Room:

292 sq/ft width 18' x depth 15'

Deck:

width 16' x depth 8'

Dining Room:

width 16' x depth 13'

Family Room:

width 18' x depth 18'

Foyer:

width 15' x depth 13'

Front Porch:

109 sq/ft

Garage:

720 sq/ft width 22' x depth 30'

Kitchen:

width 17' x depth 14'

Laundry Room:

width 7' x depth 6'

Library:

width 15' x depth 14'

Living Room:

width 18' x depth 21'

Master Bath:

width 11' x depth 20'

Master Closet:

width 15' x depth 7'

Master Suite:

width 16' x depth 20'

Morning Room:

width 12' x depth 8'

Pantry:

width 5' x depth 6'

Storage:

width 8' x depth 12'

Veranda:

width 18' x depth 15'

What's included in this plan set

See a sample plan set

Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting: The same details as provided for the first floor.

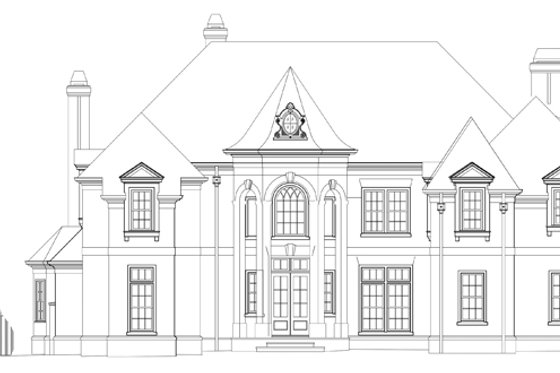

Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
