Plan 119-106

Key Specs

3820
sq ft

3
Beds

4.5
Baths

1
Floors

3
Garages

Plan Description

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

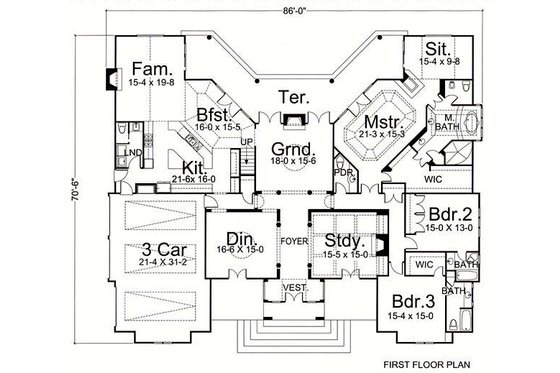

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 4.5

Stories: 1

Garages: 3

Dimension

Depth : 70' 8"

Height : 27'

Width : 85' 6"

Area

Total : 3820 sq/ft

Bonus: 1018 sq/ft

First Floor: 3820 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Roof

Primary Pitch : 7:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Master Sitting Area

Play Flex Room

Storage Area

Unfinished Future Space

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Empty Nester

Rooms

3rd BR Closet:

27 sq/ft width 3' x depth 9'

Bedroom 2:

186 sq/ft width 14' 3" x depth 13' 1"

Bedroom 2 Closet:

45 sq/ft width 5' x depth 9'

Bedroom 3:

192 sq/ft width 15' 5" x depth 12' 6"

Bedroom 3 Closet:

45 sq/ft width 5' x depth 9'

Breakfast Room:

246 sq/ft width 16' x depth 15' 5"

Dining Room:

245 sq/ft width 16' 3" x depth 15' 1"

Foyer:

82 sq/ft width 5' 6" x depth 15'

Garage:

683 sq/ft width 21' 9" x depth 31' 5"

Gathering Room:

270 sq/ft width 17' 8" x depth 15' 4"

Hall Bathroom:

65 sq/ft width 5' x depth 13'

Hall Closet:

9 sq/ft width 3' x depth 3'

Kitchen:

357 sq/ft width 21' 9" x depth 16' 5"

Living Room:

227 sq/ft width 15' 1" x depth 15' 1"

Master Bathroom:

120 sq/ft width 12' x depth 10'

Master Bedroom:

324 sq/ft width 15' 3" x depth 21' 3"

Master Closet:

90 sq/ft width 6' x depth 15'

Porch - Front:

650 sq/ft width 10' x depth 65'

Powder Room:

48 sq/ft width 6' x depth 8'

Slab Foundation:

5600 sq/ft width 80' x depth 70'

Utility Room:

50 sq/ft width 5' x depth 10'

Wash Room:

45 sq/ft width 5' 2" x depth 8' 9"

What's included in this plan set

See a sample plan set

Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting: The same details as provided for the first floor.
Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).

Pricing

Plan Options

PDF Set

Best Value!

$1695.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$2125.00

5 printed plan sets mailed to you.

5 Copy and PDF Set

$2225.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set

$2495.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Basement

$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace

$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$200.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
