Plan 437-45

Photographs may show modified designs.
Plan 437-45

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

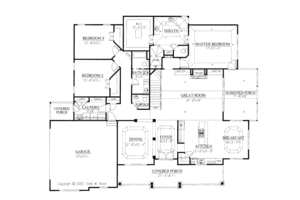

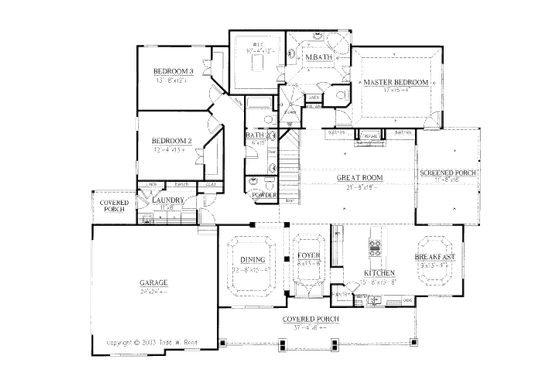

Floor Plan - Main Floor Plan

Reverse

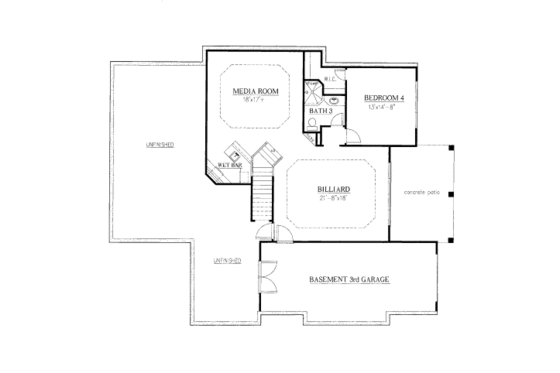

Floor Plan - Lower Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 1
Garages: 3

Dimension

Depth : 62'
Height : 29'
Width : 73' 4"

Area

Total : 2670 sq/ft
Basement Living: 1167 sq/ft
Basement Unfinished: 1503 sq/ft
First Floor: 2670 sq/ft
Garage: 580 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Conventional Frame
Roof Type : Asphalt Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone, Shake, Siding
Framing : 2"x4"

Kitchen Features

Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Hobby Rec Room Game Room
Media Room
Storage Area
Sunroom
Unfinished Future Space
Wet Bar

Garage Features

Garage Under
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot

Outdoor Spaces

Covered Front Porch
Screened Porch

Rooms

Bathroom 2:

90 sq/ft width 6' x depth 15'

Bedroom 2:

160 sq/ft width 12' 4" x depth 13'

Bedroom 3:

164 sq/ft width 13' 8" x depth 12'

Bedroom 4:

190 sq/ft width 13' x depth 14' 8"

Billiards Room:

390 sq/ft width 21' 8" x depth 18'

Breakfast:

119 sq/ft width 9' x depth 13' 4"

Covered Porch:

223 sq/ft width 37' 4" x depth 6'

Dining Room:

194 sq/ft width 12' 8" x depth 15' 4"

Foyer:

109 sq/ft width 8' x depth 13' 8"

Garage:

576 sq/ft width 24' x depth 24'

Kitchen:

245 sq/ft width 15' 8" x depth 15' 8"

Laundry Room:

88 sq/ft width 11' x depth 8'

Master Bedroom:

260 sq/ft width 17' x depth 15' 4"

Media Room:

306 sq/ft width 18' x depth 17'

Porch - Screened:

210 sq/ft width 11' 8" x depth 18'

What's included in this plan set


See a sample plan set

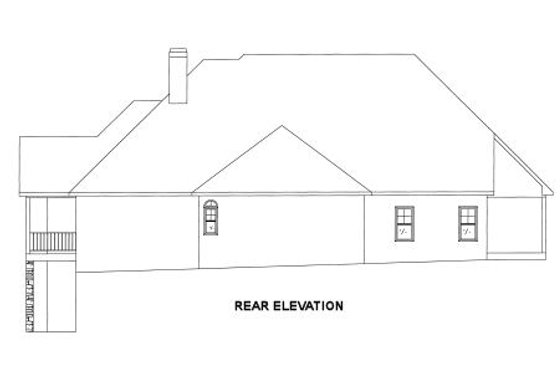

  • Exterior Elevations

    Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

  • Floor Plan(s)

    Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

  • Foundation Plan and Footings

    The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

  • Roof Plan

    Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

  • Building Sections & Details

    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

  • Notes and Details Page(s)

    The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1400.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1550.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Other Plans By This Designer

Need help?  Let our friendly experts help you find the perfect plan!

Contact us now for a free consultation.
