Plan 1060-17

Photographs may show modified designs.
Plan 1060-17

Plan Description


This plan with large open rooms and beautiful arched doorways is the epitome of lavish, country living. The chef style kitchen has an abundance of cabinet and counter space, as well as, a big walk-in pantry. Off the kitchen is a laundry/mud room that leads to the garage. Upstairs, there is a luxurious master suite with a massive master bathroom and a walk-in closet. The remaining bedrooms on the second level and in the basement are all spacious and have over-sized closets.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

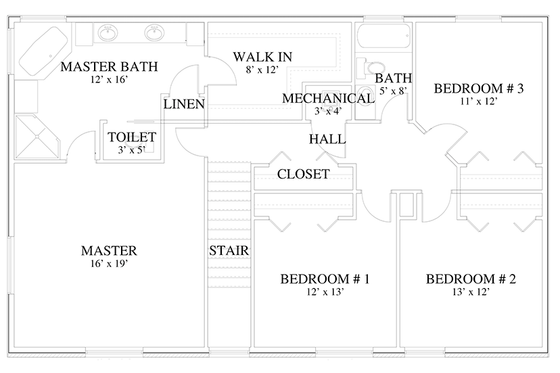

Floor Plans


Full Specs & Features


Basic Features

Bedrooms : 7
Baths : 4
Stories: 2
Garages: 2

Dimension

Depth : 38'
Height : 26'
Width : 58' 2"

Area

Total : 3841 sq/ft
Basement Living: 1214 sq/ft height 8'
First Floor: 1228 sq/ft height 8'
Garage: 715 sq/ft
Second Floor: 1399 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Stucco
Framing : Wood - 2x6

Bedroom Features

Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Workshop

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

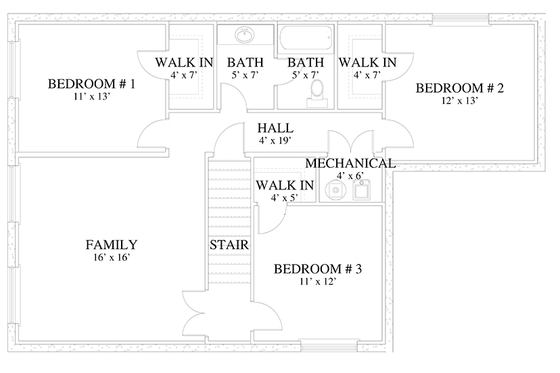

Basement Family Room:

256 sq/ft width 16' x depth 16'

Basement Hall:

76 sq/ft width 19' x depth 4'

Basement Mechanical:

24 sq/ft width 6' x depth 4'

Bath 2:

50 sq/ft width 10' x depth 5'

Bath 3:

40 sq/ft width 5' x depth 8'

Bath 4:

70 sq/ft width 10' x depth 7'

Bedroom 1:

156 sq/ft width 12' x depth 13'

Bedroom 2:

156 sq/ft width 12' x depth 13'

Bedroom 3:

132 sq/ft width 11' x depth 12'

Bedroom 4:

143 sq/ft width 13' x depth 11'

Bedroom 4 Closet:

28 sq/ft width 4' x depth 7'

Bedroom 5:

156 sq/ft width 13' x depth 12'

Bedroom 5 Closet:

28 sq/ft width 4' x depth 7'

Bedroom 6:

132 sq/ft width 11' x depth 12'

Covered Front Porch:

217 sq/ft

Covered Front Porch:

217 sq/ft width 34' x depth 6'

Dining Area:

110 sq/ft width 10' x depth 11'

Entry:

20 sq/ft width 4' x depth 5'

Family Room:

272 sq/ft width 16' x depth 17'

Garage:

715 sq/ft width 23' x depth 37'

Kitchen:

210 sq/ft width 15' x depth 14'

Laundry Room:

54 sq/ft width 6' x depth 9'

Living Room:

154 sq/ft width 14' x depth 11'

Master Bath:

192 sq/ft width 16' x depth 12'

Master Bedroom:

304 sq/ft width 16' x depth 19'

Master Closet:

96 sq/ft width 12' x depth 8'

Mechanical:

12 sq/ft width 3' x depth 4'

Office:

132 sq/ft width 12' x depth 11'

Pantry:

24 sq/ft width 6' x depth 4'

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

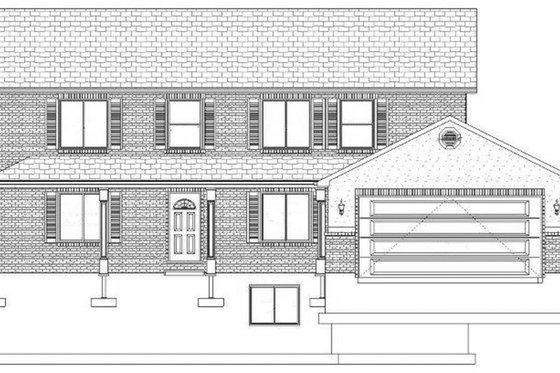

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1080.00
5 printed plan sets mailed to you.

Reproducible Set

$1125.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

PDF Set

Best Value!
$1215.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1980.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$742.50
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

Crawlspace

$225.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$225.00
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x6

$0.00
Wood 2x6

Wood 2x4

$45.00
Wood 2x4

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$135.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$90.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
