Plan 1060-29

Key Specs

3859
sq ft

5
Beds

3.5
Baths

2
Floors

3
Garages

Plan Description

This plan with gorgeous craftsman details and a large open floor plan, will definitely be one of the most impressive homes on the block. The arched entry leads to the main living area with a stately fireplace. The large kitchen has an over-sized walk in pantry, and connects to the mud/laundry room leading to the garage entrance. The luxurious master suite has a separate shower and garden tub. The additional bedrooms have walk in closets of their own and plenty of space to spread out.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

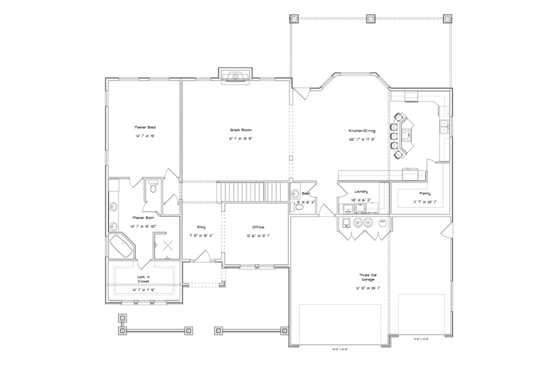

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

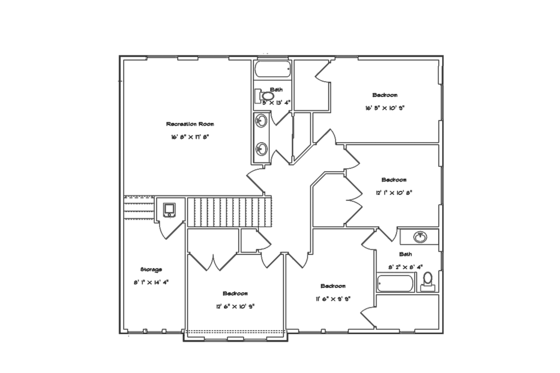

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 3.5

Stories: 2

Garages: 3

Dimension

Depth : 52' 10"

Height : 25' 6"

Width : 68'

Area

Total : 3859 sq/ft

First Floor: 2314 sq/ft height 9'

Garage: 804 sq/ft

Second Floor: 1545 sq/ft height 9'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Garage Features

Front Entry Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Jack & Jill Bath

Rooms

Bath 2:

68 sq/ft width 8' 2" x depth 8' 4"

Bedroom 2:

175 sq/ft width 16' 3" x depth 10' 9"

Bedroom 3:

129 sq/ft width 12' 1" x depth 10' 8"

Bedroom 3:

67 sq/ft width 5' x depth 13' 4"

Bedroom 4:

112 sq/ft width 11' 6" x depth 9' 9"

Bedroom 5:

134 sq/ft width 12' 6" x depth 10' 9"

Covered Front Porch:

41 sq/ft

Covered Rear Porch:

422 sq/ft

Entry:

118 sq/ft width 7' 9" x depth 15' 3"

Garage:

804 sq/ft width 31' 5" x depth 25' 1"

Great Room:

239 sq/ft width 12' 1" x depth 19' 9"

Half Bath:

31 sq/ft width 5' x depth 6' 3"

Kitchen/ Dining:

549 sq/ft width 30' 11" x depth 17' 9"

Laundry Room:

63 sq/ft width 10' x depth 6' 3"

Master Bath:

223 sq/ft width 14' 1" x depth 15' 10"

Master Bedroom:

268 sq/ft width 14' 1" x depth 19'

Master Closet:

109 sq/ft width 14' 1" x depth 7' 9"

Office:

151 sq/ft width 12' 6" x depth 12' 1"

Pantry:

117 sq/ft width 11' 7" x depth 10' 1"

Rec Room:

294 sq/ft width 16' 8" x depth 17' 8"

Storage:

116 sq/ft width 8' 1" x depth 14' 4"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

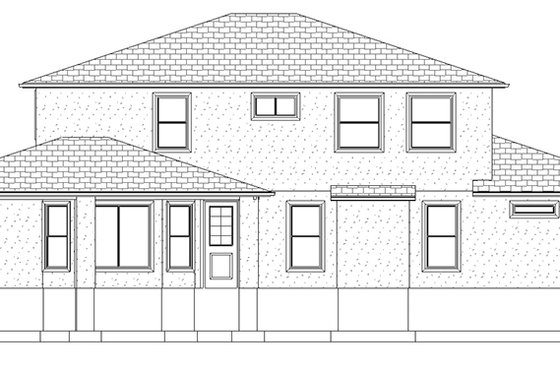

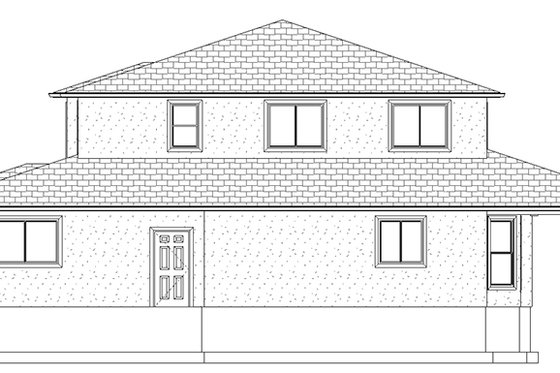

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Options

PDF Set

Best Value!

$1305.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1435.50

5 printed plan sets mailed to you.

5 Copy and PDF Set

$1575.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Unlimited Build

$1795.50

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set

$1935.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Crawlspace

$315.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$315.00

Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00

Wood 2x6 Exterior Walls

Wood 2x4

$225.00

Wood 2x4 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$175.50

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$90.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$180.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
