Office contains spacious walk-in closet allowing it to be used as a 5th bedroom. Expandable area located on second floor. featuring 2 fireplaces. one in family room / outdoor fireplace and kitchen 3 bedrooms wt spacious walk-in closets each bedroom down stairs contains own full bathroom. sliding barn doors going into pantry
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

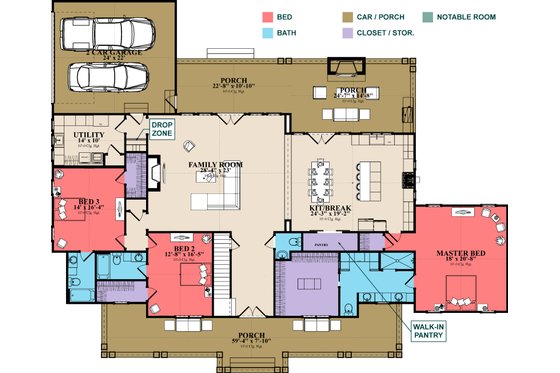

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Depth : 73' 11"
Height : 32' 1"
Garage : 551 sq/ft
Main Floor : 3093 sq/ft
Porch : 1161 sq/ft
Upper Floor : 767 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10
Roof Framing : Stick
Roof Load : 30
Roof Type : Architectural Shingles
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Suited For Corner Lot
Suited For View Lot
Covered Front Porch
Covered Rear Porch
Economical To Build
Suited For Vacation Home
What's included in this plan set
See a sample plan set
*See important information before purchasing
* Alternate foundations are available. Please call 1-800-913-2350 for pricing and turnaround time
Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.
* Foundation: Complete with dimensions, dimensioned plumbing and referenced details
Elevations: Complete with dimensions, ridge heights and special notes and materials
Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
Floor joist: Complete with spans, sizes and direction (if applicable).
Ceiling Joist: Complete with spans, sizes and direction
Sections: Complete with dimensions, notes and Specifications
Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
