This stunning modern design steps out from the dining room to a cozy patio for after-dinner stories as the stars come out. Upstairs, the master suite shows off a sleek private bathroom with two sinks, a big shower, and a separate tub. Laundry's up here, too.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

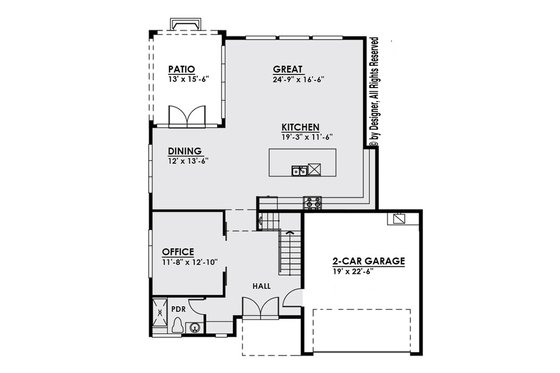

Floor Plan - Main Floor

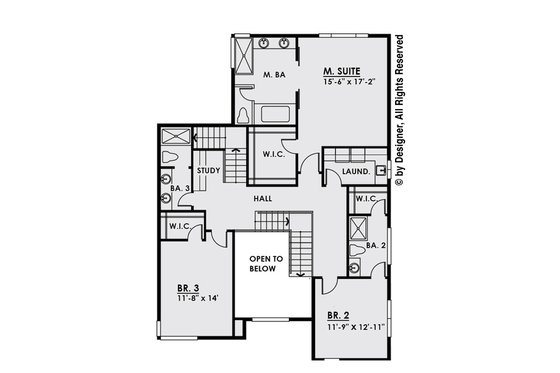

Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Depth : 52' 6"
Height : 30'
Garage : 430 sq/ft
Main Floor : 1372 sq/ft
Patios : 168 sq/ft
Upper Floor : 1704 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Garage Ceiling : 9'
Lower Ceiling : 9'
Main Ceiling : 8' 6"
Upper Ceiling Ft : 8' 6"
Roof Framing : rafter
Roof Type : flat
Exterior Wall Framing
Framing : 2x6
Insulation : R21
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
What's included in this plan set
See a sample plan set
*See important information before purchasing
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
5 Copy Set
5 printed plan sets mailed to you.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
