Plan 1073-24

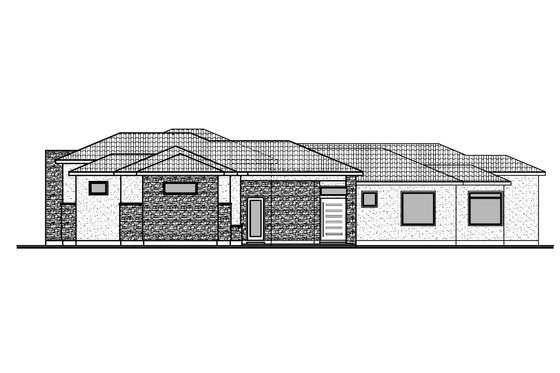

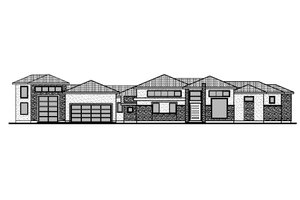

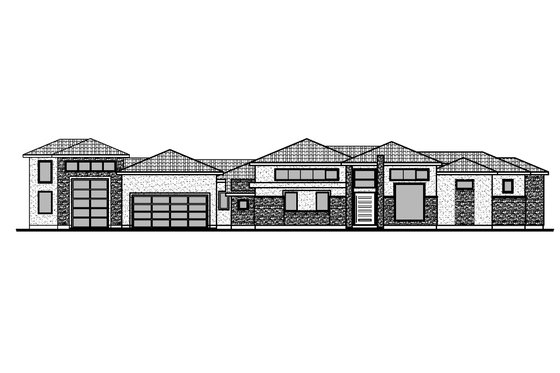

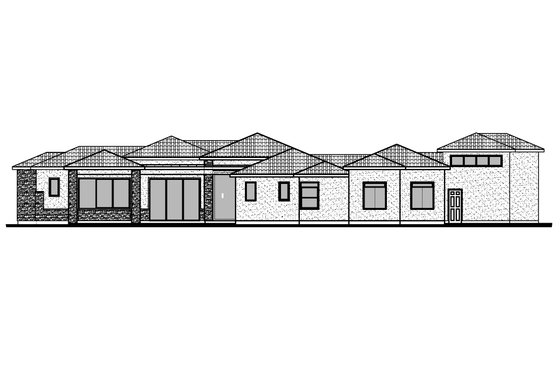

Photographs may show modified designs.
Plan 1073-24

Key Specs


Plan Sq Ft

3990
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Plan Description


Incredible 4 bedroom + Office estate boasting over sized 3-car garage and shop with towering 14' tall ceilings in the great room, Kitchen and Foyer. This plan also has an in-law suite and a private theater with a snack bar. Out door dining is maximized with large oversized glass doors for entertaining and celebrations. The Master suite has an oversized walk -in dressing room with a center island, make-up desk as well as a walk-through double shower and stand alone tub. The Laundry has every amenity desired including an extra freezer space and dog wash.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

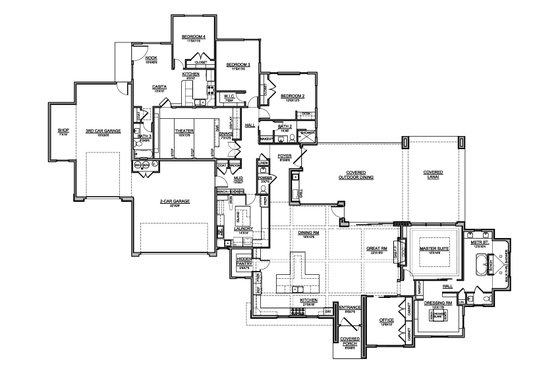

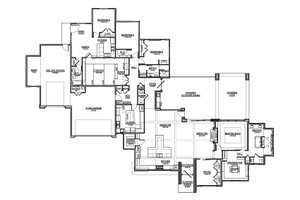

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 1
Garages: 3

Dimension

Depth : 92' 6"
Height : 22'
Width : 124' 5"

Area

Total : 3990 sq/ft
Garage : 1174 sq/ft
Main Floor : 3990 sq/ft
Patios : 925 sq/ft
Porch : 68 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : ceiling Heights vary in this home, 10' and 12' tall ceilings are common in bedrooms, all other rooms are 14'-6" ceiling height. The 3rd car garage has a 17'-6" ceiling height
Garage Ceiling : 12' 6"
Main Ceiling : 14' 6"

Roof

Primary Pitch : 5:12
Roof Framing : Conventional
Roof Load : 30LL / 15DL
Roof Type : Truss
Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : 2 x 6
Insulation : R21

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Workshop

Garage Features

Front Entry Garage
Oversized Garage
RV Garage
Tandem Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

More

Additional Half Bath
Unusual Shape
Wheelchair Adaptable

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1255.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set

$1435.50
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Eight Copy and PDF Set

$1525.50
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build

$1615.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

$1255.50
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Monolithic Slab

$0.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$225.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$360.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$360.00
Ideal for sloping lot, lower level of home partially underground.

Walk Out Basement

$360.00
Ideal for a sloping lot, lower level with outdoor access.

Partial Basement

$900.00
Ideal for builds where a full basement is not necessary or site conditions don’t allow for excavation. Typically combined with a slab or crawlspace.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$135.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$90.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License

$450.00
Additional Use License.

Audio Video Design

$90.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
