Plan 1054-3

Photographs may show modified designs.
Plan 1054-3

Key Specs

Plan Sq Ft

sq ft

Plan Bedrooms


Plan Bathrooms


Plan Floors


Plan Garages


Plan Description

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

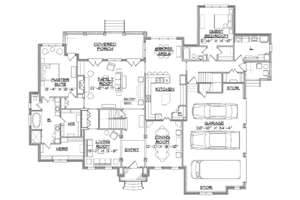

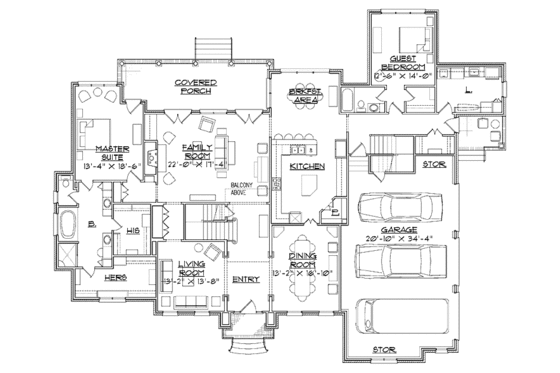

Floor Plan - Main Floor


BUILDER Advantage Program


Join the club and save 5% on your first order plus exclusive discounts and more.


Click to Get Your Trend Report

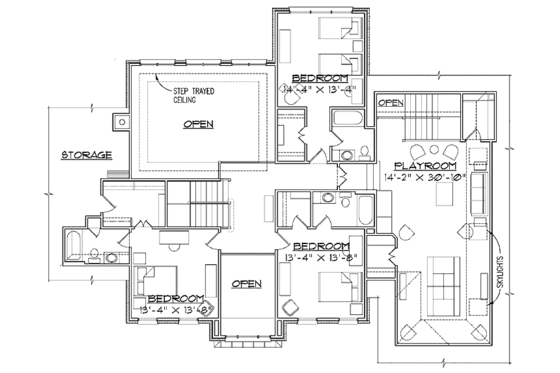

Floor Plan - Upper Floor


Full Specs & Features

Basic Features

Bedrooms : 5
Baths : 5
Stories: 2
Garages: 3


Depth : 69' 2"
Height : 40'
Width : 88' 8"


Total : 4004 sq/ft
Bonus: 619 sq/ft
First Floor: 2886 sq/ft height 10'
Garage: 869 sq/ft
Porch: 375 sq/ft
Second Floor: 1118 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick
Framing : Wood - 2x4

Bedroom Features

Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Storage Area
Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch


Bathroom 2:

35 sq/ft width 5' x depth 7' 2"

Bathroom 3:

51 sq/ft width 9' 8" x depth 5' 4"

Bathroom 4:

50 sq/ft width 9' 5" x depth 5' 4"

Bathroom 5:

50 sq/ft width 6' 4" x depth 8'

Bedroom 2:

175 sq/ft width 12' 6" x depth 14'

Bedroom 2 Closet:

27 sq/ft width 5' 7" x depth 5'

Bedroom 3:

182 sq/ft width 13' 4" x depth 13' 8"

Bedroom 3 Closet:

65 sq/ft width 9' 5" x depth 7'

Bedroom 4:

182 sq/ft width 13' 4" x depth 13' 8"

Bedroom 4 Closet:

26 sq/ft width 5' 4" x depth 5'

Bedroom 5:

191 sq/ft width 14' 4" x depth 13' 4"

Bedroom 5 Closet:

32 sq/ft width 4' x depth 8'

Breakfast Area:

151 sq/ft width 13' 2" x depth 11' 6"

Covered Porch:

306 sq/ft width 30' 8" x depth 10'

Dining Room:

221 sq/ft width 13' 2" x depth 16' 10"

Family Room:

381 sq/ft width 22' x depth 17' 4"


178 sq/ft width 8' 6" x depth 21'


715 sq/ft width 20' 10" x depth 34' 4"

Garage Storage:

26 sq/ft width 3' 6" x depth 7' 6"

Hall Closet:

26 sq/ft width 7' 6" x depth 3' 6"


261 sq/ft width 14' 6" x depth 18'

Kitchen Island:

12 sq/ft width 3' x depth 4'

Laundry Room:

114 sq/ft width 12' 9" x depth 9'

Living Room:

179 sq/ft width 13' 2" x depth 13' 8"

Master Bathroom:

170 sq/ft width 10' 4" x depth 16' 6"

Master Bedroom:

246 sq/ft width 13' 4" x depth 18' 6"

Master Closet - Hers:

124 sq/ft width 15' 6" x depth 8'

Master Closet - His:

73 sq/ft width 7' 4" x depth 10'


24 sq/ft width 4' 10" x depth 5'

Play Room:

436 sq/ft width 14' 2" x depth 30' 10"

Porch - Front:

50 sq/ft width 10' 2" x depth 5'

Storage Closet:

26 sq/ft width 3' 6" x depth 7' 6"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

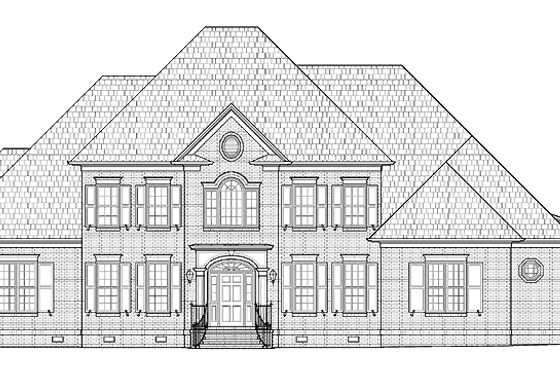

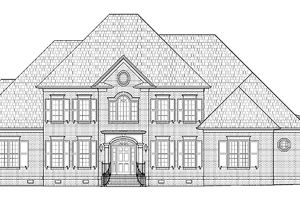

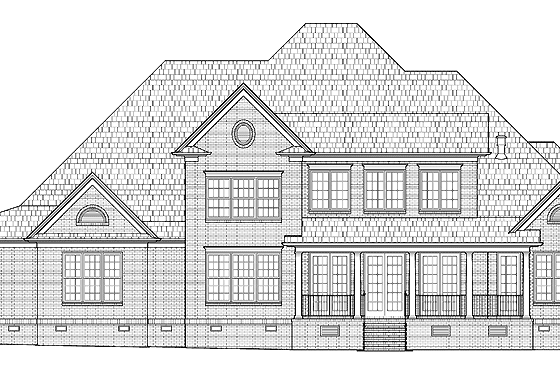

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing
