Plan 84-599

Key Specs

3087
sq ft

5
Beds

3
Baths

1
Floors

3
Garages

Plan Description

Versatile design to fit your needs. You have the option of 5 bedrooms or turn bdrms 4 & 5 into extra living spaces. Lots of room in the kitchen with a breakfast nook and open to the family room. Beautiful stone/stucco elevation with an all hip roof.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

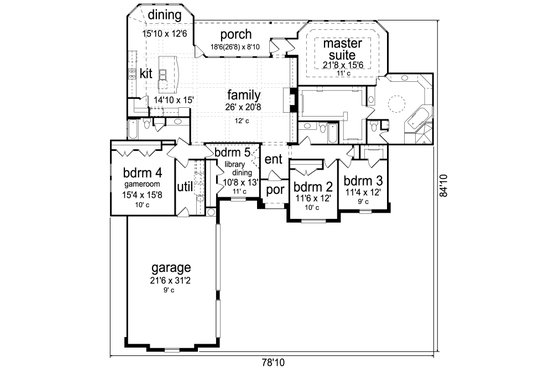

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 3

Stories: 1

Garages: 3

Dimension

Depth : 84' 10"

Height : 26' 8"

Width : 78' 10"

Area

Total : 3087 sq/ft

First Floor: 3087 sq/ft

Garage: 746 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 11' Tier in Master

Garage Ceiling : 9'

Main Ceiling : 12'

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Hip

Exterior Wall Framing

Exterior Wall Finish : stone, stucco

Framing : 2x4

Bedroom Features

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

width 11' 6" x depth 12'

Bedroom 3:

width 11' 4" x depth 12'

Bedroom 4:

width 15' 4" x depth 15' 8"

Bedroom 5:

width 10' 8" x depth 13'

Dining:

width 15' 10" x depth 12' 6"

Family Room:

width 26' x depth 20' 8"

Front Porch:

50 sq/ft

Garage:

746 sq/ft width 21' 6" x depth 31' 2"

Kitchen:

width 14' 10" x depth 15'

Master Suite:

width 21' 8" x depth 15' 6"

Rear Porch:

191 sq/ft width 26' 6" x depth 8' 10"

What's included in this plan set

See a sample plan set

FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

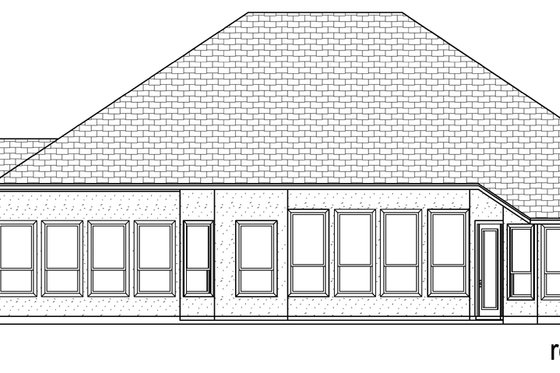

ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
