Plan 437-49

Photographs may show modified designs.
Plan 437-49

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 3

Dimension

Depth : 71'
Height : 38'
Width : 74'

Area

Total : 4138 sq/ft

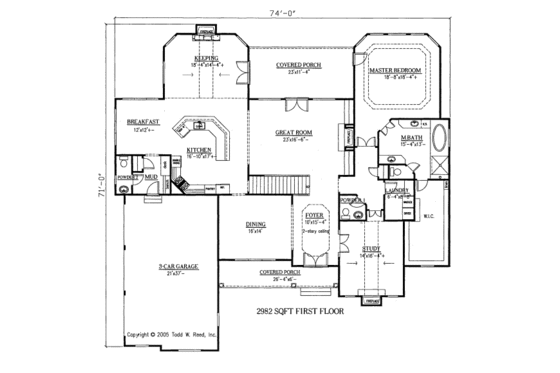

First Floor: 2982 sq/ft height 10'
Garage: 708 sq/ft
Second Floor: 1156 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Keeping Room vaults to 18 ft. and then flattens out. Study vaults to 16 ft. and then flattens out. Master Bedroom double trays up to 12 ft.
Lower Ceiling : 12'
Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : Conventional Frame
Roof Type : Asphalt Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick, Stone, Shingle
Framing : 2"x4"

Rooms

Basement Foundation:

5254 sq/ft width 74' x depth 71'

Bathroom 2:

94 sq/ft width 8' 4" x depth 11' 4"

Bathroom 3:

63 sq/ft width 12' 8" x depth 5'

Bedroom 2:

205 sq/ft width 14' 8" x depth 14'

Bedroom 2 Closet:

35 sq/ft width 7' x depth 5'

Bedroom 3:

169 sq/ft width 13' x depth 13'

Bedroom 3 Closet:

30 sq/ft width 5' 4" x depth 5' 8"

Bedroom 4:

240 sq/ft width 16' x depth 15'

Bedroom 4 Closet:

30 sq/ft width 5' 4" x depth 5' 8"

Breakfast Room:

156 sq/ft width 13' x depth 12'

Dining Room:

224 sq/ft width 16' x depth 14'

Foyer:

153 sq/ft width 10' x depth 15' 4"

Garage:

777 sq/ft width 21' x depth 37'

Keeping Room:

262 sq/ft width 18' 4" x depth 14' 4"

Kitchen:

286 sq/ft width 16' 10" x depth 17'

Laundry Room:

54 sq/ft width 6' 4" x depth 8' 8"

Living Room:

390 sq/ft width 23' 8" x depth 16' 6"

Loft:

118 sq/ft width 12' 8" x depth 9' 4"

Master Bathroom:

199 sq/ft width 15' 4" x depth 13'

Master Bedroom:

342 sq/ft width 18' 8" x depth 18' 4"

Master Closet:

180 sq/ft width 9' 8" x depth 18' 8"

Powder Room:

25 sq/ft width 5' x depth 5'

Study:

228 sq/ft width 14' x depth 16' 4"

What's included in this plan set


See a sample plan set
  • Exterior Elevations

    Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc).

  • Floor Plan(s)

    Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out.

  • Foundation Plan and Footings

    The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations.

  • Roof Plan

    Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable.

  • Building Sections & Details

    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design.

  • Notes and Details Page(s)

    The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1600.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
