A second master suite gives you tons of options in this handsome Craftsman home, from hosting special visitors to providing a comfortable place for in-laws or other relatives. The main master suite (yours!) features a spacious private bathroom and easy access to the den. Check out the big laundry room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

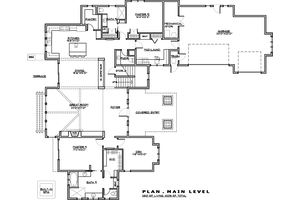

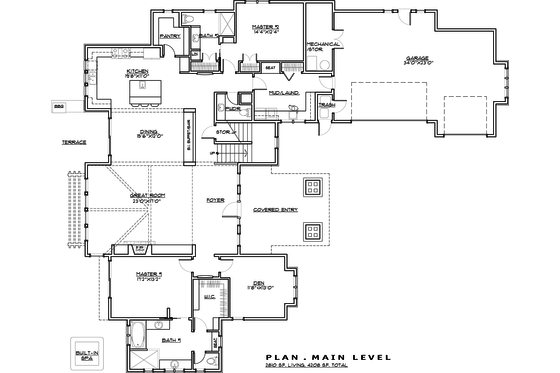

Floor Plan - Main Floor

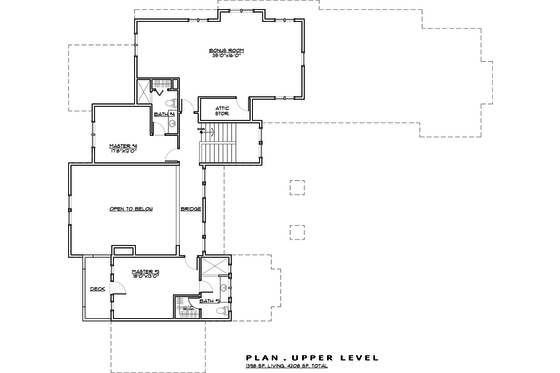

Floor Plan - Upper Floor
Full Specs & Features
Depth : 95' 6"
Height : 28' 6"
First Floor: 2810 sq/ft
Garage: 935 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : 8:12
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Horizontal lap siding, Vertical siding, shingle siding
Framing : 2x6
2 Master Suites
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Master Bedrooms
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
560 sq/ft width 35' x depth 16'
152 sq/ft width 11' 8" x depth 13'
186 sq/ft width 15' 6" x depth 12'
935 sq/ft width 34' x depth 23'
391 sq/ft width 23' x depth 17'
216 sq/ft width 19' 8" x depth 11'
Master Suite 1:
226 sq/ft width 17' 2" x depth 13' 2"
Master Suite 2:
177 sq/ft width 14' 4" x depth 12' 4"
Master Suite 3:
237 sq/ft width 18' 3" x depth 13'
Master Suite 4:
212 sq/ft width 17' 8" x depth 12'
What's included in this plan set
See a sample plan set
*See important information before purchasing
Floor Plans: Detailed floor plans for both the main level and upper level (if applicable), include pertinent dimensions for: walls, windows, rooms and door openings. You'll also find the location of all appliances on these plans as well.
Exterior Elevations: These plans include 4 elevation drawings showing the front, back and both sides. Exterior materials are called out.
Building Sections: Perhaps one of the most important pages on any set of plans, the section cuts the house in half and shows details such as wall thickness, roof construction, foundation details, roof pitch, ceiling heights, and insulation.
Foundation and Main Level Framing: Detailed drawings Including floor framing, location and direction of floor joists, locations of footings, notes related to the foundation and framing.
Lower Roof and Upper Floor Framing: Detailed drawings Including floor and roof framing and notes related to the upper level and roof construction.
Detail sheets: Detailed drawings and notes showing typical and specific foundation, wall, roof, and chimney construction.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
One electronic set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
