European Style House Plan - 4 Beds 4.5 Baths 4278 Sq/Ft Plan #929-813

Key Specs

4278
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Select Plan Set Options What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$240.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$60.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Material List	$300.00
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Subtotal

$2250.00

Or order by phone: 1-800-913-2350

Wow! Cost to Build Reports Only $4.99 with Code CTB2023 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Plan 929-813

Key Specs

4278
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description

This European home offers comfort and sophistication. The grand vaulted foyer leads to both the study and dining rooms. The dining room flows into the kitchen, offering ample space and amenities such as the large hearth room and breakfast nook. Beyond the kitchen is the great room with access to the back porch. On the right side of the home is the master suite with a private sitting area. Upstairs are a recreation room and two additional bedrooms, each with its own full bath.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

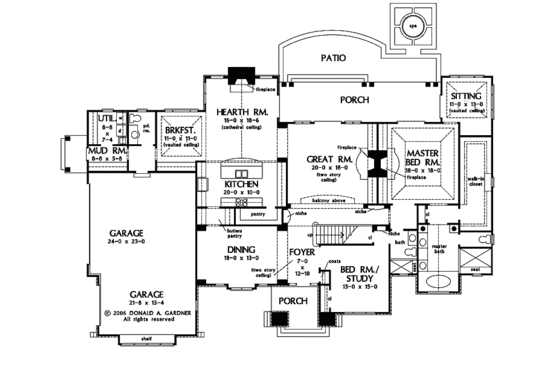

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

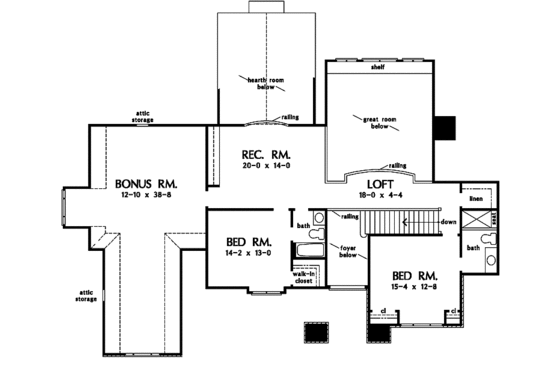

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 4

Baths : 4.5

Stories: 2

Garages: 3

Dimension

Depth : 62' 4"

Height : 39' 2"

Width : 96'

Area

Total : 4278 sq/ft

Bonus: 702 sq/ft

First Floor: 3187 sq/ft height 10'

Garage: 891 sq/ft

Porch: 454 sq/ft

Second Floor: 1091 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 14:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Hobby Rec Room Game Room

Loft

Master Sitting Area

Mud Room

Unfinished Future Space

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

58 sq/ft width 6' x depth 9' 8"

Bathroom 3:

44 sq/ft width 5' 6" x depth 8'

Bathroom 4:

64 sq/ft width 6' x depth 10' 8"

Bedroom 2:

195 sq/ft width 13' x depth 15'

Bedroom 2 Closet:

12 sq/ft width 2' x depth 6'

Bedroom 3:

184 sq/ft width 14' 2" x depth 13'

Bedroom 3 Closet:

26 sq/ft width 5' 8" x depth 4' 8"

Bedroom 4:

194 sq/ft width 15' 4" x depth 12' 8"

Bedroom 4 Closet:

9 sq/ft width 4' 8" x depth 2'

Bedroom 4 Closet:

4 sq/ft width 2' 4" x depth 2'

Bonus Room - Unfinished:

496 sq/ft width 12' 10" x depth 38' 8"

Breakfast Room:

121 sq/ft width 11' x depth 11'

Butler's Pantry:

30 sq/ft width 8' 4" x depth 3' 8"

Coat Closet:

4 sq/ft width 2' x depth 2'

Dining Room:

234 sq/ft width 18' x depth 13'

Foyer:

89 sq/ft width 7' x depth 12' 10"

Garage:

787 sq/ft width 21' 8" x depth 36' 4"

Great Room:

360 sq/ft width 20' x depth 18'

Hearth Room:

296 sq/ft width 16' x depth 18' 6"

Kitchen:

200 sq/ft width 20' x depth 10'

Linen Closet:

25 sq/ft width 6' x depth 4' 4"

Linen Closet 2:

6 sq/ft width 1' 8" x depth 4'

Loft:

79 sq/ft width 18' 4" x depth 4' 4"

Master Bathroom:

135 sq/ft width 9' x depth 15'

Master Bedroom:

324 sq/ft width 18' x depth 18'

Master Closet:

147 sq/ft width 7' x depth 21'

Master Sitting Area:

110 sq/ft width 11' x depth 10'

Mud Room:

49 sq/ft width 8' 8" x depth 5' 8"

Pantry:

37 sq/ft width 10' 4" x depth 3' 8"

Porch - Front:

96 sq/ft width 10' 8" x depth 9'

Porch - Left:

41 sq/ft width 5' x depth 8' 4"

Porch - Rear:

326 sq/ft width 36' 4" x depth 9'

Powder Room:

43 sq/ft width 6' x depth 7' 4"

Recreation Room:

280 sq/ft width 20' x depth 14'

Storage:

13 sq/ft width 3' 4" x depth 4'

Utility Room:

63 sq/ft width 8' 8" x depth 7' 4"

What's included in this plan set

See a sample plan set

This designer charges $49.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.

Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.

Cover Sheet - A rendering of the front exterior of the house.
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.

Pricing

Plan Options

PDF Set

Best Value!

$2250.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$3950.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set

$2050.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation Options

Crawlspace

$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x4

$0.00

Wood 2x4 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$240.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Material List

$300.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
