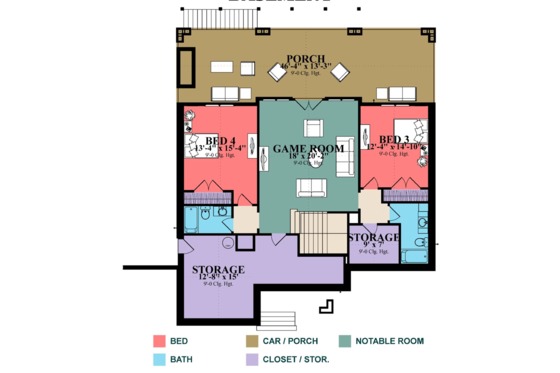

Designed for luxury waterfront living, this house plan features two bedrooms on the main level and two on the lower level. The lower level also includes a game room, storage and access to the outdoor living space.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.
* Foundation: Complete with dimensions, dimensioned plumbing and referenced details
Elevations: Complete with dimensions, ridge heights and special notes and materials

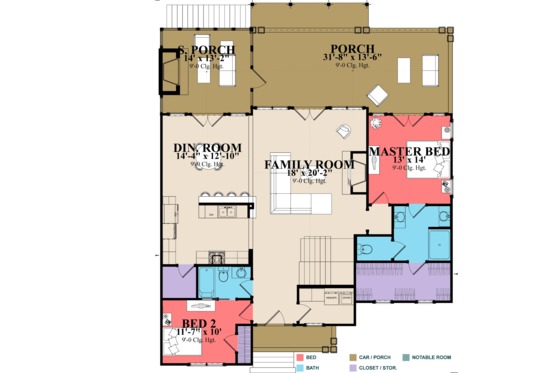

Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
Floor joist: Complete with spans, sizes and direction (if applicable).
Ceiling Joist: Complete with spans, sizes and direction
Sections: Complete with dimensions, notes and Specifications
Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
