Plan Description


With an unusual layout that offers private accommodations for a large group, the Palm Vista is an ideal vacation home or primary residence for a large family. Florida-inspired style ensures it is at home in any coastal setting. The main level is essentially one large open space encompassing the great room, dining area, and kitchen. On the second level enjoy not one, but two master suites, each complete with a luxurious bathroom that include a separate shower and whirlpool tub. In addition, there are two more oversized secondary bedrooms which share access to a screen porch. A spacious rec room serves as a gathering space on this floor. On the third level is a cozy built in seat and bar area with an outdoor balcony that's perfect for taking in sunrise or sunset views.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

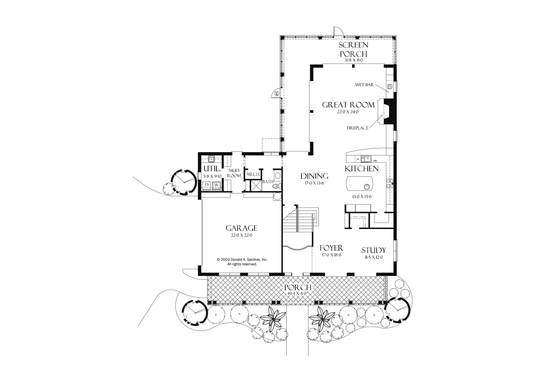

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

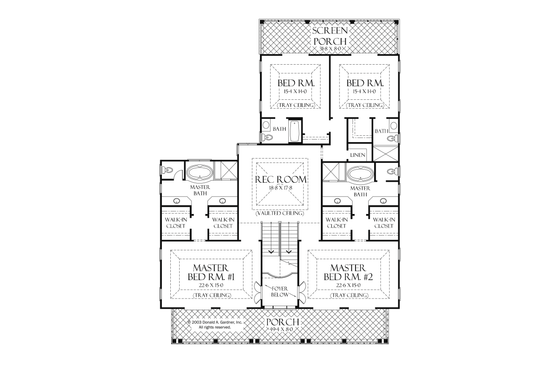

Floor Plan - Upper Floor

Reverse

Floor Plan - Other Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 5
Stories: 3
Garages: 2

Dimension

Depth : 73' 10"
Height : 34' 7"
Width : 54' 4"

Area

Total : 4441 sq/ft
First Floor: 1885 sq/ft height 10'
Garage: 521 sq/ft height 10'
Second Floor: 2495 sq/ft height 10'
Third Floor: 61 sq/ft height 10'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Concrete
Secondary Pitch : 7:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stucco
Framing : Block

Bedroom Features

2 Master Suites
Fireplace
Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Deck

Rooms

Bedroom 3:

width 15' 4" x depth 14'

Bedroom 4:

width 15' 4" x depth 14'

Dining:

width 17' x depth 13' 6"

Foyer:

width 17' x depth 18' 8"

Garage:

width 22' x depth 22'

Great Room:

width 22' x depth 24'

Kitchen:

width 13' x depth 15' 6"

Master Bedroom:

width 22' 6" x depth 15'

Master Bedroom:

width 22' 6" x depth 15'

Porch - Front:

width 49' 4" x depth 8'

Porch - Screened:

width 31' 8" x depth 8'

Recreation Room:

width 18' 8" x depth 17' 8"

Study:

width 11' 5" x depth 12'

Utility Room:

width 5' 8" x depth 9' 10"
