This charming garage has a mansard roof with a steep slope and can accommodate two cars. It features two large doors in the front, a window on each side of the building, as well as two outside doors on the right side. Upstairs, the loft includes a laundry area, a bedroom, a bathroom, a living room, and an open kitchen and living room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

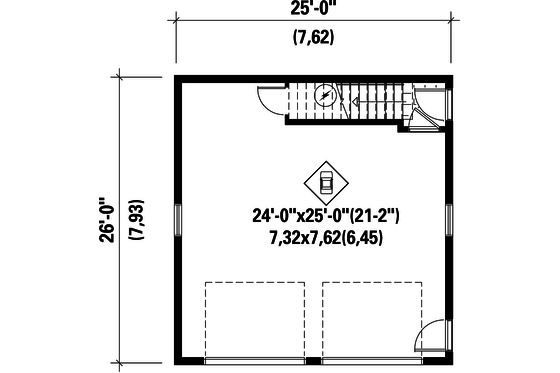

Floor Plan - Main Floor Plan

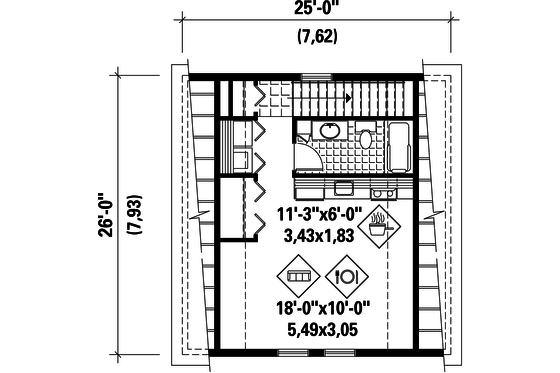

Floor Plan - Upper Floor Plan
Full Specs & Features
Basement : 0 sq/ft
Garage : 650 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 0 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof Framing : Truss
Roof Load : 50
Exterior Wall Framing
Framing : Wood - 2 x 6
Insulation : R20
