Plan 141-248

Photographs may show modified designs.
Plan 141-248

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 4.5
Stories: 2
Garages: 3

Dimension

Depth : 87'
Width : 82'

Area

Total : 4762 sq/ft
Bonus : 502 sq/ft
Garage : 776 sq/ft
Main Floor : 3553 sq/ft
Porch : 488 sq/ft
Upper Floor : 1209 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Play Flex Room
Storage Area
Unfinished Future Space

Garage Features

Carport Porte Cochere
Rear Entry Garage
Split Garage

Entryway

Friend S Entry

Outdoor Spaces

Balcony
Breezeway
Covered Front Porch
Covered Rear Porch

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set

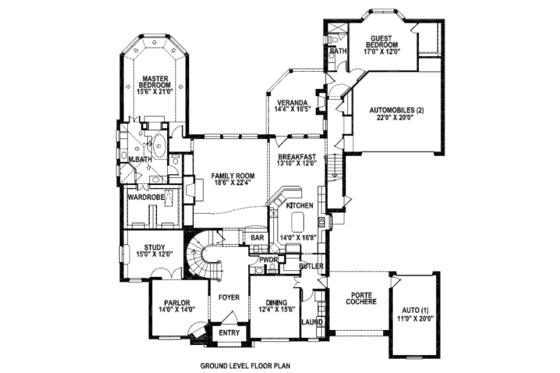

  • Scaled floor plans dimension ed and noted with window and door sizes, square footage, ceiling treatments and other elements applicable of floor plans.

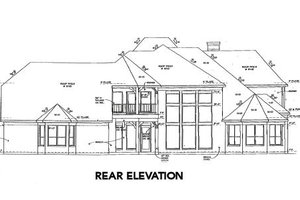

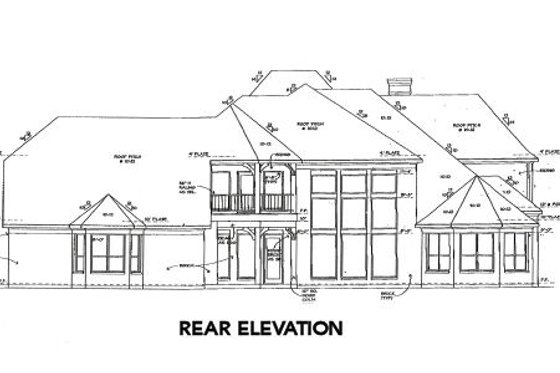

  • Floor Plan(s) - Scaled exterior elevations of four sides of plan with notation of roof slopes,and exterior materials.
  • Some plans may also include cross section drawing(s) depicting interior spaces.
  • Scaled roof plan noting roof slopes.
  • Lighting lay-out plan(s) showing our suggested lighting and switching and electrical outlet locations according to code at time of production of drawings.
  • Typical construction detail sheets showing different methods of construction along with Construction Specifications Institute (CSI) Guidelines for specifications of means and methods of constructions.
  • Scaled slab type foundation plan specific to area of construction requirements of original build ( requires verification of slab designed by licensed structural engineer before use in area(s) of construction ) No Warranties, Expressed, Implied or Otherwise, regarding its Accuracy, Completeness or Performance.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1150.00
5 printed plan sets mailed to you.

8 Copy Set

$1250.00
8 printed plan sets mailed to you.

Reproducible Set

$1250.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$150.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
