Plan 48-237

Photographs may show modified designs.
Plan 48-237

Key Specs

sq ft





Plan Description

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

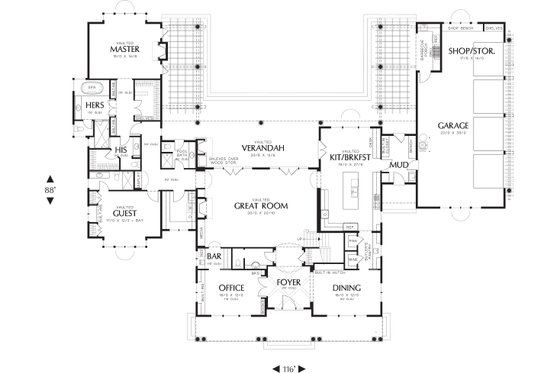

Floor Plan - Main Floor Plan


Floor Plan - Upper Floor Plan


Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 4


Depth : 88'
Height : 33'
Width : 116'


Total : 4790 sq/ft
First Floor: 3800 sq/ft
Second Floor: 990 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Main Ceiling : 10'
Upper Ceiling Ft : 9'


Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle
Framing : 2"x6"

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Master Sitting Area
Media Room
Mud Room
Storage Area

Garage Features

Oversized Garage
Side Entry Garage


Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch


Jack & Jill Bath


3rd BR Closet:

38 sq/ft width 5' 6" x depth 7'

Bathroom 2:

60 sq/ft width 8' x depth 7' 6"

Bathroom 3:

54 sq/ft width 9' x depth 6'

Bathroom 4:

60 sq/ft width 12' x depth 5'

Bathroom 5:

63 sq/ft width 9' x depth 7'

Bedroom 2:

234 sq/ft width 17' 2" x depth 13' 8"

Bedroom 2 Closet:

26 sq/ft width 6' 6" x depth 4'

Bedroom 3:

234 sq/ft width 17' 2" x depth 13' 8"

Bedroom 3 Closet:

26 sq/ft width 6' 6" x depth 4'

Bedroom 4:

206 sq/ft width 17' x depth 12' 2"

Bedroom 4 Closet:

6 sq/ft width 2' x depth 3'

Breakfast Room:

192 sq/ft width 16' x depth 12'

Butler's Pantry:

100 sq/ft width 10' x depth 10'

Covered Porch:

381 sq/ft width 30' 6" x depth 12' 6"

Dining Room:

216 sq/ft width 18' x depth 12'


121 sq/ft width 11' x depth 11'

Game Room:

200 sq/ft width 14' x depth 14' 4"


805 sq/ft width 23' x depth 35'

Gathering Room:

624 sq/ft width 30' x depth 20' 10"

Hall Bathroom:

71 sq/ft width 11' x depth 6' 6"


256 sq/ft width 16' x depth 16'

Kitchen Island:

40 sq/ft width 4' x depth 10'

Laundry Room:

90 sq/ft width 9' x depth 10'

Linen Closet:

8 sq/ft width 2' x depth 4'

Master Bathroom:

162 sq/ft width 9' x depth 18'

Master Bedroom:

278 sq/ft width 19' x depth 14' 8"

Master Closet:

77 sq/ft width 7' x depth 11'

Master Closet Two:

44 sq/ft width 8' x depth 5' 6"

Mud Room:

108 sq/ft width 9' x depth 12'


216 sq/ft width 18' x depth 12'

Outdoor Kitchen:

78 sq/ft width 6' 6" x depth 12'


20 sq/ft width 4' x depth 5'

Porch - Front:

320 sq/ft width 50' x depth 6' 5"

Toilet Closet:

20 sq/ft width 5' x depth 4'

Wet Bar:

45 sq/ft width 9' x depth 5'
