Plan Description

With the feel of a custom home, this plan has many unique features not commonly found in ranch style homes. The multiple archways and large windows, combined with the openness of the floor plan create a living space that is unparalleled. The master suite has separate his and hers walk-in closets and a beautiful master bath making it an exceptional retreat for the owners. On the lower level, there is a media room along with a roomy home office with deep storage closet which could also be a craft or hobby room.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features

Basic Features

Bedrooms : 6
Baths : 3
Stories: 1
Garages: 2


Depth : 58'
Height : 22' 10"
Width : 68' 4"


Total : 4810 sq/ft
Basement Living: 2404 sq/ft height 8'
First Floor: 2406 sq/ft height 10'
Garage: 622 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan

Garage Features

Side Entry Garage


Bath 1:

55 sq/ft width 11' x depth 5'

Bath 3:

52 sq/ft width 10' 4" x depth 5'

Bedroom 1:

165 sq/ft width 11' 9" x depth 14'

Bedroom 2:

173 sq/ft width 12' x depth 14' 5"

Bedroom 4:

207 sq/ft width 11' 6" x depth 18'

Bedroom 4 Closet:

54 sq/ft width 9' x depth 6'

Bedroom 5:

173 sq/ft width 12' 1" x depth 14' 4"

Dining Room:

180 sq/ft width 18' x depth 10'

Family Media Room:

874 sq/ft width 48' 7" x depth 18'

Family Room:

556 sq/ft width 21' 8" x depth 26' 8"


622 sq/ft width 23' 7" x depth 25' 2"

Hers Master Closet:

48 sq/ft width 8' x depth 6'

His Master Closet:

48 sq/ft width 8' x depth 6'

Home Office:

295 sq/ft width 17' 7" x depth 16' 9"

Home Office Closet:

66 sq/ft width 13' 2" x depth 5'


303 sq/ft width 18' x depth 16' 10"


46 sq/ft width 8' x depth 5' 9"

Master Bath:

114 sq/ft width 13' 6" x depth 8' 5"

Master Bedroom:

240 sq/ft width 17' 9" x depth 13' 6"


139 sq/ft width 17' 9" x depth 7' 10"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

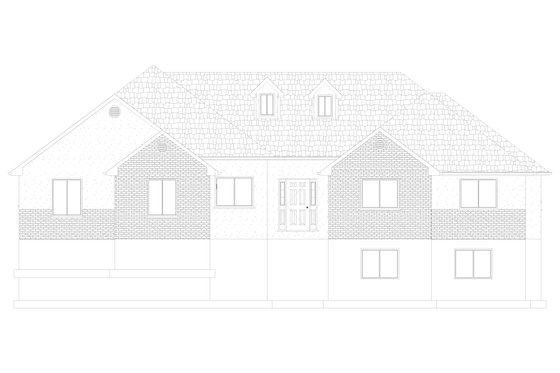

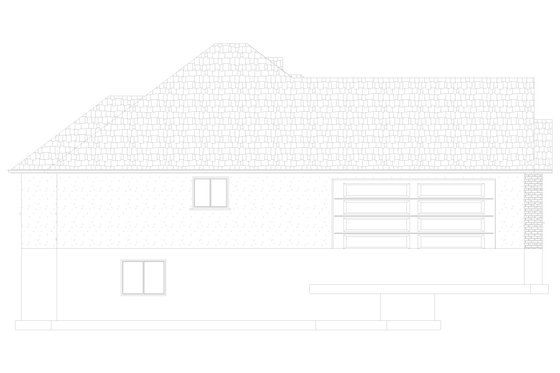

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

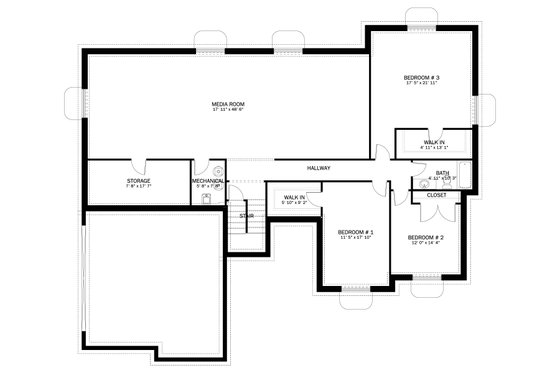

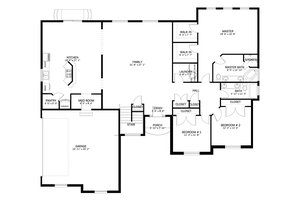

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing
