Plan 25-4753

Photographs may show modified designs.
Plan 25-4753

Key Specs


490
sq ft

1
Beds

1
Baths

2
Floors

2
Garages

Plan Description


This spacious and elegant garage loft stands out with its modern architectural details and terrace overlooking the front. The garage can accommodate two cars and features two large doors and an entrance door in the front, as well as a service door on the left side. On the upper floor, the loft includes a bathroom, a bedroom, a kitchen with an island and an open living room, as well as an access to the terrace where the owners can eat or relax.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

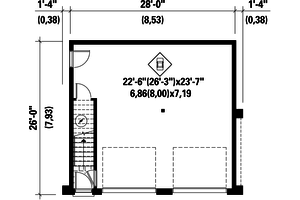

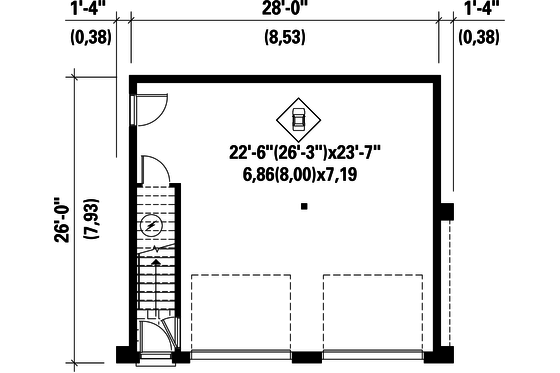

Floor Plan - Main Floor Plan

Reverse

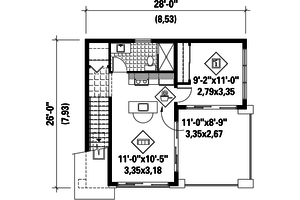

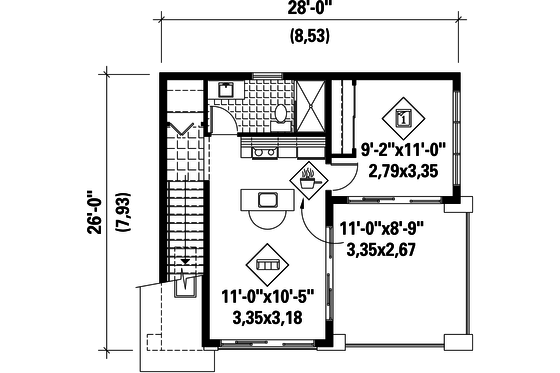

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 2
Garages: 2

Dimension

Depth : 26'
Width : 30' 8"

Area

Total : 490 sq/ft
Garage : 728 sq/ft
Main Floor : 0 sq/ft
Upper Floor : 490 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Ceiling vaults to a peak of 11'-10"
Main Ceiling : 8'

Roof

Roof Framing : Truss
Roof Load : 50

Exterior Wall Framing

Framing : Wood - 2 x 6
Insulation : R20

What's included in this plan set


See a sample plan set
  • Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
  • Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
  • Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
  • Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$535.00
5 printed plan sets mailed to you.

8 Copy Set

$575.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$700.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1070.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Basement

$0.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$90.00
A list of building supplies needed to construct the infrastructure of your new house.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
