Plan Description


Keeping up the Jones was never easier with this executive plan. A rich European elevation features stone, arched windows & metal bay roof. Huge gourmet kitchen is perfect for entertaining, & large family has room for everyone. Oversized bedrooms & walk-in closets & sophisticated master suite pamper the whole family. Upstairs gameroom has room for pool table & big screen TV seating, & has a generous deck in case you have a view of a lake or golf course.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

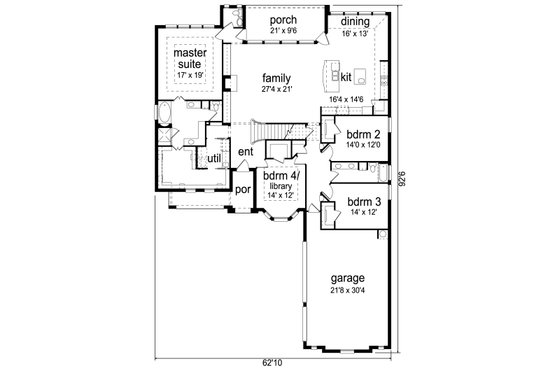

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 3.5
Stories: 2
Garages: 3

Dimension

Depth : 92' 6"
Height : 31' 10"
Width : 62' 10"

Area

Total : 3702 sq/ft
Deck: 231 sq/ft
First Floor: 3072 sq/ft
Garage: 774 sq/ft
Second Floor: 630 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 11' Tier in Master 10' Vault in Bdrm 4 9' Tier in Gameroom
Garage Ceiling : 9'
Main Ceiling : 12'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : gables
Secondary Pitch : 12;12

Exterior Wall Framing

Exterior Wall Finish : stone
Framing : 2x4

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

Rooms

Bedroom 2:

width 14' x depth 12'

Bedroom 3:

width 14' x depth 12'

Bedroom 4:

width 14' x depth 12'

Deck:

231 sq/ft width 22' 6" x depth 10'

Dining:

width 16' x depth 13'

Family Room:

width 27' 4" x depth 21'

Game Room:

width 22' 6" x depth 21'

Garage:

774 sq/ft width 21' 8" x depth 30' 4"

Kitchen:

width 16' 4" x depth 14' 6"

Master Bedroom:

width 17' x depth 19'

Porch Front:

142 sq/ft

Porch Rear:

200 sq/ft width 21' x depth 9' 6"
