Plan 417-435

Photographs may show modified designs.
Plan 417-435

Key Specs


5106
sq ft

5
Beds

4.5
Baths

2
Floors

4
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

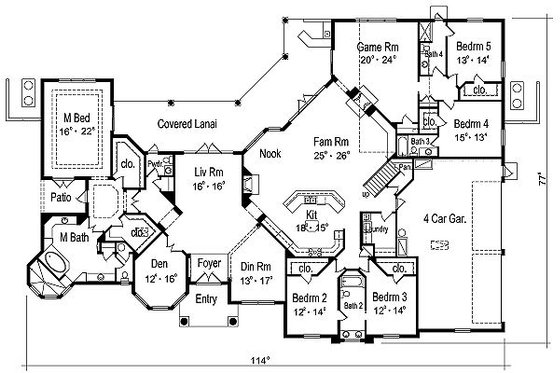

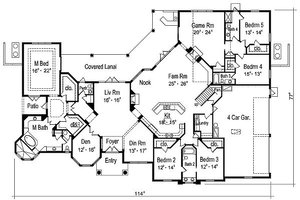

Floor Plan - Main Floor Plan

Reverse
European Floor Plan - Main Floor Plan Plan #417-435

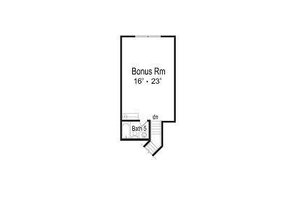

Floor Plan - Other Floor Plan

Reverse
European Floor Plan - Other Floor Plan Plan #417-435

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 4.5
Stories: 2
Garages: 4

Dimension

Depth : 77' 8"
Height : 30'
Width : 114'

Area

Total : 5106 sq/ft
First Floor: 5106 sq/ft
Second Floor: 508 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 12'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Concrete block

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Play Flex Room
Storage Area

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

More

Jack & Jill Bath

Rooms

3rd BR Closet:

38 sq/ft width 9' 8" x depth 4'

Bathroom 2:

97 sq/ft width 6' x depth 16' 4"

Bathroom 3:

51 sq/ft width 9' 8" x depth 5' 4"

Bedroom 2:

170 sq/ft width 12' 2" x depth 14'

Bedroom 2 Closet:

40 sq/ft width 10' x depth 4'

Bedroom 3:

165 sq/ft width 12' x depth 13' 9"

Bedroom 3 Closet:

40 sq/ft width 10' x depth 4'

Bedroom 4:

199 sq/ft width 15' x depth 13' 4"

Bedroom 4 Closet:

25 sq/ft width 4' 4" x depth 6'

Bedroom 5:

186 sq/ft width 13' x depth 14' 4"

Bedroom 5 Closet:

40 sq/ft width 10' x depth 4'

Bonus Room - Finished:

408 sq/ft width 16' x depth 25' 6"

Breakfast Room:

100 sq/ft width 10' x depth 10'

Dining Room:

234 sq/ft width 13' x depth 18'

Foyer:

80 sq/ft width 8' 8" x depth 9' 4"

Game Room:

480 sq/ft width 20' x depth 24'

Garage:

813 sq/ft width 20' x depth 40' 8"

Gathering Room:

693 sq/ft width 26' 8" x depth 26'

Hall Bathroom:

32 sq/ft width 6' 6" x depth 5'

Kitchen:

362 sq/ft width 24' 2" x depth 15'

Laundry Room:

82 sq/ft width 8' x depth 10' 4"

Living Room:

194 sq/ft width 16' x depth 12' 2"

Master Bathroom:

329 sq/ft width 21' x depth 15' 8"

Master Bedroom:

362 sq/ft width 16' x depth 22' 8"

Master Closet:

128 sq/ft width 13' 6" x depth 9' 6"

Porch - Rear:

366 sq/ft width 30' 6" x depth 12'

Study:

217 sq/ft width 12' 4" x depth 17' 8"

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$1800.00
5 printed plan sets mailed to you.

PDF Set

Best Value!
$2300.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$2300.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set

$4600.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Wood 2x6

$450.00
Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$750.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
