Plan 47-321

Key Specs


5159
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description


This unusual stucco-and-siding design opens with a grand portico to a foyer that extends to the living room with a fireplace. Proceed up a few steps to the dining room with its coffered ceiling and butler's pantry, which connects to the gourmet kitchen. The attached hearth room has the requisite fireplace and three sets of French doors to the covered porch. The family room sports a coffered ceiling and a fireplace flanked by French doors. The second floor boasts four bedrooms, including a master suite with a tray ceiling, covered deck, and lavish bath. Two full baths serve the family bedrooms and a bonus room that might be used as an additional bedroom or hobby space.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

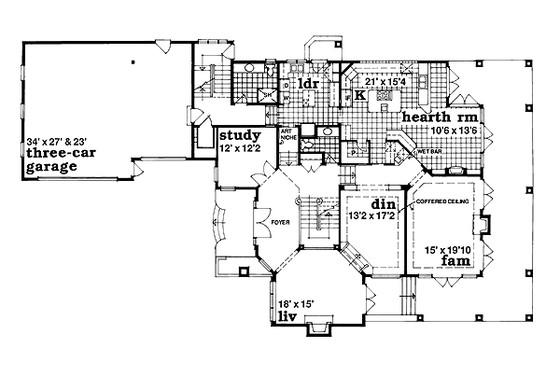

Floor Plan - Main Floor Plan

Reverse

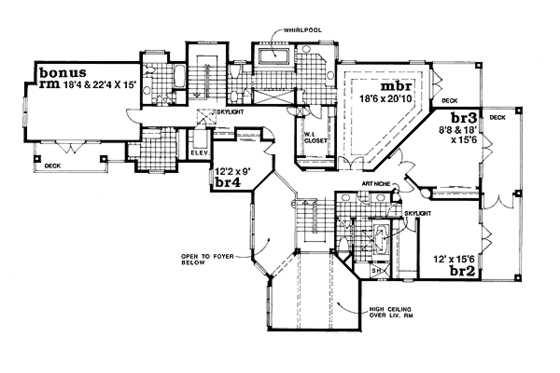

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 3

Dimension

Depth : 103' 6"
Height : 36'
Width : 57' 8"

Area

Total : 5159 sq/ft
Bonus: 337 sq/ft
First Floor: 2473 sq/ft height 9'
Second Floor: 2686 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12
Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Wood - 2x6

Bedroom Features

Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Play Flex Room
Unfinished Future Space

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Rear Porch

Rooms

3rd BR Closet:

18 sq/ft width 9' 4" x depth 2'

Basement Foundation:

2037 sq/ft width 57' 8" x depth 35' 4"

Bathroom 2:

178 sq/ft width 10' 6" x depth 17'

Bathroom 3:

73 sq/ft width 9' x depth 8' 2"

Bedroom 2:

186 sq/ft width 12' x depth 15' 6"

Bedroom 2 Closet:

59 sq/ft width 5' x depth 11' 10"

Bedroom 3:

134 sq/ft width 8' 8" x depth 15' 6"

Bedroom 3 Closet:

59 sq/ft width 5' x depth 11' 10"

Bedroom 4:

119 sq/ft width 12' 2" x depth 9' 10"

Bedroom 4 Closet:

10 sq/ft width 5' 4" x depth 2'

Bedroom 5:

90 sq/ft width 9' x depth 10'

Bonus Room - Finished:

274 sq/ft width 18' 4" x depth 15'

Crawlspace Foundation:

1266 sq/ft width 43' 8" x depth 29'

Deck:

277 sq/ft width 8' x depth 34' 8"

Dining Room:

226 sq/ft width 13' 2" x depth 17' 2"

Foyer:

112 sq/ft width 8' x depth 14'

Game Room:

146 sq/ft width 12' x depth 12' 2"

Garage:

782 sq/ft width 34' x depth 23'

Gathering Room:

297 sq/ft width 15' x depth 19' 10"

Hall Bathroom:

70 sq/ft width 8' 8" x depth 8' 2"

Hall Closet:

8 sq/ft width 4' 4" x depth 2'

Kitchen:

321 sq/ft width 21' x depth 15' 4"

Laundry Room:

61 sq/ft width 7' 8" x depth 8'

Living Room:

270 sq/ft width 18' x depth 15'

Master Bathroom:

194 sq/ft width 16' x depth 12' 2"

Master Bedroom:

370 sq/ft width 18' 6" x depth 20'

Master Closet:

94 sq/ft width 7' 8" x depth 12' 4"

Parlor:

108 sq/ft width 6' x depth 18'

Porch - Front:

150 sq/ft width 8' 6" x depth 17' 8"

Porch - Left:

67 sq/ft width 9' x depth 7' 6"

Porch - Rear:

536 sq/ft width 10' x depth 53' 8"

Porch - Right:

240 sq/ft width 24' x depth 10'

Powder Room:

38 sq/ft width 7' 9" x depth 5'

Study:

141 sq/ft width 10' 6" x depth 13' 6"

Utility Room:

150 sq/ft width 12' x depth 12' 6"
