Plan 411-118

Photographs may show modified designs.
Plan 411-118

Key Specs


5208
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans


Floor Plan - Main Floor Plan

Reverse

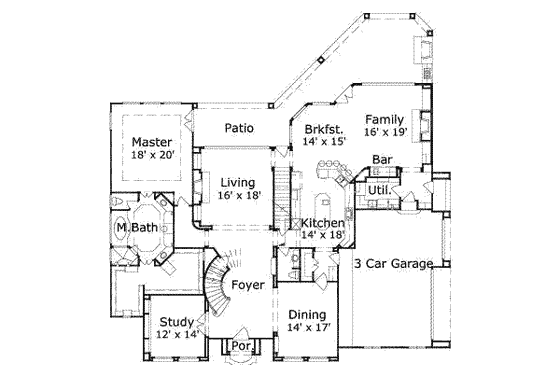

European Floor Plan - Main Floor Plan Plan #411-118

Floor Plan - Upper Floor Plan

Reverse

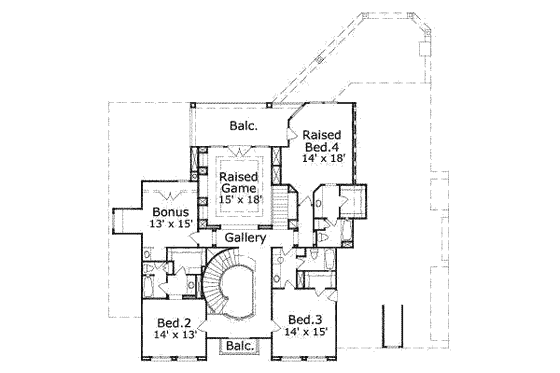

European Floor Plan - Upper Floor Plan Plan #411-118

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 3

Dimension

Depth : 80'
Height : 36'
Width : 78'

Area

Total : 5208 sq/ft
Main Floor : 3346 sq/ft
Upper Floor : 1862 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'
