Ranch House Plan 117-563 5218 sq ft, 3 bed, 4.5 bath, 2 floor, 3 garage

Name: Ranch Style House Plan - 3 Beds 4.5 Baths 5218 Sq/Ft Plan #117-563
Brand: Houseplans.com
SKU: 117-563
Price: 2295.00 USD
Availability: InStock

Key Specs

5218
sq ft

3
Beds

4.5
Baths

2
Floors

3
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$75.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$495.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$2295.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Ranch

Ranch House Plan 117-563 5218 sq ft, 3 bed, 4.5 bath, 2 floor, 3 garage

Key Specs

5218
sq ft

3
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description

This ranch design floor plan is 5218 sq ft and has 3 bedrooms and 4.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

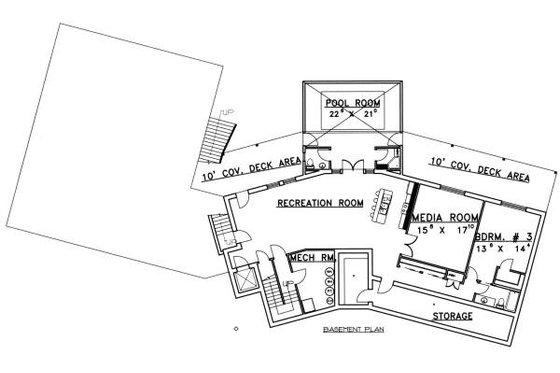

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

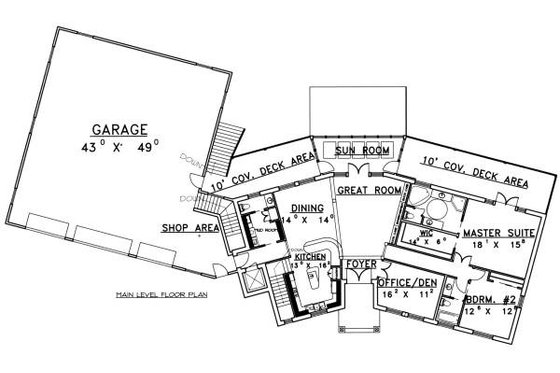

Floor Plan - Main Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 3

Baths : 4.5

Stories: 2

Garages: 3

Dimension

Depth : 78' 4"

Height : 27' 7"

Width : 131' 2"

Area

Total : 5218 sq/ft

Basement Living: 2257 sq/ft

Bonus: 704 sq/ft

First Floor: 2257 sq/ft

Garage: 2461 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Stone

Framing : Concrete block

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Media Room

Mud Room

Storage Area

Workshop

Garage Features

Oversized Garage

Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Suited For Vacation Home

Rooms

Bedroom 2:

156 sq/ft width 12' 6" x depth 12' 6"

Bedroom 3:

193 sq/ft width 13' 6" x depth 14' 4"

Dining Room:

196 sq/ft width 14' x depth 14'

Garage:

2064 sq/ft width 43' x depth 48'

Kitchen:

210 sq/ft width 13' x depth 16' 2"

Master Suite:

280 sq/ft width 18' 1" x depth 15' 6"

Master Walk-In Closet:

84 sq/ft width 14' x depth 6'

Media Room:

279 sq/ft width 15' 8" x depth 17' 10"

Office:

180 sq/ft width 16' 2" x depth 11' 2"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Pricing

Plan Options

5 Copy Set

$2295.00

5 printed plan sets mailed to you.

CAD Single Build

$2395.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!

$2395.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set

$2545.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build

$3095.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation Options

Daylight Basement

$0.00

Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$75.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$495.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
