Craftsman House Plan 132-251 5250 sq ft, 5 bed, 4.5 bath, 2 floor, 3 garage

Name: Craftsman Style House Plan - 5 Beds 4.5 Baths 5250 Sq/Ft Plan #132-251
Brand: Houseplans.com
SKU: 132-251
Price: 3100.00 USD
Availability: InStock

Key Specs

5250
sq ft

5
Beds

4.5
Baths

2
Floors

3
Garages

Get Personalized Help

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$300.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$495.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$3100.00

Or order by phone: 1-800-913-2350

Get Personalized Help

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Send me your Newsletter, too!

Phone: 1-800-913-2350

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

Home > Style > Craftsman

Craftsman House Plan 132-251 5250 sq ft, 5 bed, 4.5 bath, 2 floor, 3 garage

Key Specs

5250
sq ft

5
Beds

4.5
Baths

2
Floors

3
Garages

Plan Description

At just over 5,200 square feet, the immensity of this estate is scarcely realized from the exterior alone. Step inside and the clever layout intrigues and impresses. The kitchen is arranged for convenient interaction with the adjacent nook and family room. A nearby covered porch invites alfresco meals. Upstairs, the master suite befits the owner of this exquisite home. Three additional family bedrooms share two full baths. A large bonus room offers a wealth of possibilities.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

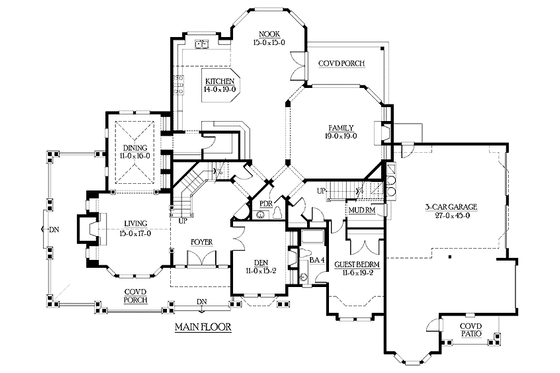

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

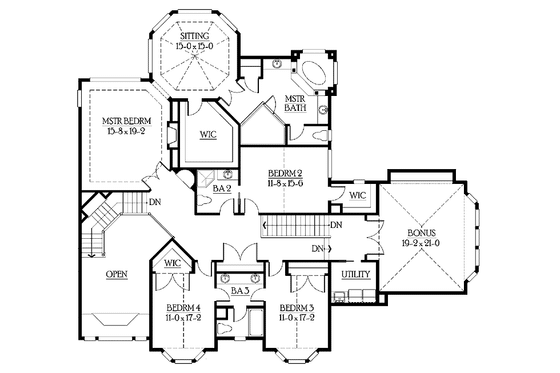

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 4.5

Stories: 2

Garages: 3

Dimension

Depth : 74'

Height : 34' 4"

Width : 98'

Area

Total : 5250 sq/ft

First Floor: 2750 sq/ft height 9' 1"

Garage: 1060 sq/ft

Second Floor: 2500 sq/ft height 9' 1"

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Main Floor Laundry

Master Sitting Area

Media Room

Mud Room

Storage Area

Unfinished Future Space

Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Wrap Around Porch

Jack & Jill Bath

Rooms

Bedroom 2:

180 sq/ft width 11' 8" x depth 15' 6"

Bedroom 3:

188 sq/ft width 11' x depth 17' 2"

Bedroom 4:

188 sq/ft width 11' x depth 17' 2"

Bonus Room - Finished:

402 sq/ft width 19' 2" x depth 21'

Den:

166 sq/ft width 11' x depth 15' 2"

Dining Room:

176 sq/ft width 11' x depth 16'

Garage:

1215 sq/ft width 27' x depth 45'

Guest Bedroom 1:

220 sq/ft width 11' 6" x depth 19' 2"

Kitchen:

266 sq/ft width 14' x depth 19'

Living Room:

255 sq/ft width 15' x depth 17'

Master Bedroom:

300 sq/ft width 15' 8" x depth 19' 2"

What's included in this plan set

See a sample plan set

Purchasing a CAD set gives you a multi-build license.

If you are building this plan in the state of Washington, please call us before placing your order.

This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

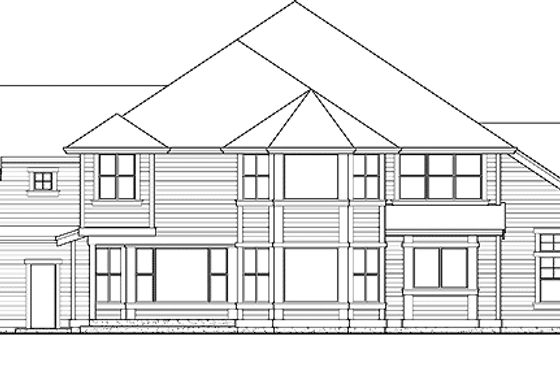

- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

Pricing

Plan Options

PDF Set

Best Value!

$3100.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set

$4900.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Crawlspace

$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Framing Options

Wood 2x6

$0.00

Wood 2x6 Exterior Walls

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Right-Reading Reverse

$300.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$495.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
