Craftsman House Plan 48-466

Key Specs


Plan Sq Ft

5250
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

5.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$225.00
Additional Construction Sets$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

$165.00
$495.00
$39.00
$165.00
Subtotal
$3004.00
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

5250
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

5.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Plan Description


This craftsman style 5 bedroom, 5.5 bath with 3 garage stalls falls in the 5000-6000 square feet range. The floor plan features a guest suite, teen suite/Jack & Jill bath, friend's entry, open floor plan, walk-in pantry/cabinet pantry, covered rear porch, grill deck/sundeck, volume/vaulted ceiling, upstairs bedrooms/bath, walk-in closet, main floor laundry, bonus/play/flex room, front entry garage, mud room, master sitting area. PHOTOGRAPHER: BOB GREENSPAN

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

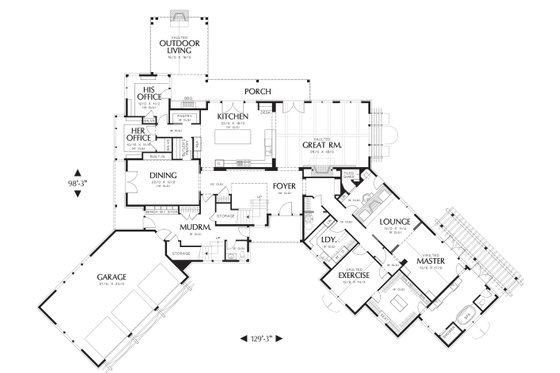

Floor Plan - Main Floor

Reverse
houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

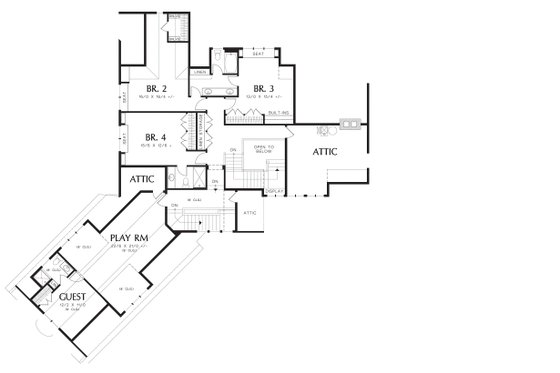

Floor Plan - Upper Floor

Reverse

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 5.5
Stories: 2
Garages: 3

Dimension

Depth : 98' 2"
Height : 31' 4"
Width : 129' 2"

Area

Total : 5250 sq/ft
Bonus: 653 sq/ft
First Floor: 3961 sq/ft
Garage: 862 sq/ft
Porch: 234 sq/ft
Second Floor: 1289 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : 2"x6"

Bedroom Features

Guest Suite
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Mud Room
Play Flex Room

Garage Features

Front Entry Garage

Entryway

Friend S Entry

Outdoor Spaces

Covered Rear Porch
Grill Deck Sundeck

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set
  • Exterior Elevations
    In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

  • Foundation Plan
    The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

  • Floor Plan(s)
    Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

  • Building Sections
    Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

  • Roof Plan
    Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

  • Notes and Details Page(s)
    Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
* See important information before purchasing
