Ranch House Plan 1060-21 5296 Sq Ft, 5 Bed, 4 Bath, 1 Floor, 2 Garage

Name: Ranch Style House Plan - 5 Beds 4 Baths 5296 Sq/Ft Plan #1060-21
Brand: Houseplans.com
SKU: 1060-21
Price: 1250.00 USD
Availability: InStock

Floor Plans

View All Images

Floor Plans

Get Expert Advice

Overview
Full Specs & Features
What's Included
FAQs
More Plans

Key Specs

5
Beds
4
Baths
1
Floors
2
Garages
5296
Square Feet

An attractive covered porch catches the eye upon first glance of this house and that only begins to showcase all the luxury this home offers. There is a large great room, a big home office and a dreamy kitchen large enough for two side-by-side refrigerators. A beautiful master suite has a spacious walk-in closet and master bathroom with the capacity for a separate washer and dryer. In the basement, there is room for a home gym, as well as, a guest apartment with a separate entrance and kitchenette.

Questions on this plan?

New to the process and looking for some help to kick things off? Let us know a bit about your plans and we’ll be happy to help.

Or call 1-800-913-2350

Ranch Plan 1060-21

Starts at $1250.00,

Plan Type Options

Foundation Options

Framing Options

Optional Add-Ons

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$495.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials directly onto your PDF (foundation to rooftop showing interior and exterior materials). Comprehensive material lists will be delivered 5-7 days after your plan order. Note, this product is only available with a PDF plan purchase.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

1-800-913-2350

Questions on this plan?

New to the process and looking for some help to kick things off? Let us know a bit about your plans and we’ll be happy to help.

Or call 1-800-913-2350

Budget & Customization Tools

Customize this Plan

Tell us about your desired changes and we can prepare an estimate.

Cost to Build Report

A personalized estimate based on your location, plan, & materials. / FAQ

Residential Construction Guide

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Full specs & Features

Basic Features

Bedrooms: 5

Baths: 4

Stories: 1

Garages: 2

Dimension

Depth: 88'

Height: 25' 5"

Width: 75'

Area

Total: 5296 sq/ft

Basement Living: 2819 sq/ft height 9'

First Floor: 2477 sq/ft height 9'

Garage: 845 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch: 6:12

Roof Framing: Truss

Roof Type: Asphalt

Secondary Pitch: 4:12

Exterior Wall Framing

Exterior Wall Finish: Stone/Stucco

Framing: Wood - 2x6

Bedroom Features

Fireplace

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Media Room

Mud Room

Open Floor Plan

Vaulted / Cathedral Ceilings

Garage Features

Carport Porte Cochere

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Apartment Bedroom 1:

175 sq/ft width 10' 1" x depth 17' 4"

Apartment Bedroom 2:

175 sq/ft width 10' 1" x depth 17' 4"

Apartment Bedroom 3:

226 sq/ft width 14' 1" x depth 16' 1"

Apartment Kitchen/ Dining:

271 sq/ft width 14' 1" x depth 19' 3"

Basement Family Room:

335 sq/ft width 20' 5" x depth 16' 5"

Basement Media Room:

234 sq/ft width 18' 1" x depth 12' 11"

Bedroom 2:

width 14' 1" x depth 16' 5"

Covered Front Porch:

1032 sq/ft

Covered Rear Porch:

377 sq/ft

Dining Room:

339 sq/ft width 19' 1" x depth 17' 9"

Garage:

845 sq/ft width 23' 8" x depth 34' 2"

Great Room:

440 sq/ft width 22' x depth 20'

Home Gym:

198 sq/ft width 14' 1" x depth 14' 1"

Kitchen:

510 sq/ft width 21' 5" x depth 23' 10"

Master Closet:

103 sq/ft width 14' 1" x depth 7' 4"

Master Bath:

177 sq/ft width 14' 1" x depth 11' 9"

Master Bedroom:

233 sq/ft width 16' 1" x depth 14' 6"

Office:

243 sq/ft width 14' 1" x depth 17' 3"

What's Included

Cover Sheet: General Notes for framing, plumbing, electrical, window/egress, concrete, fastener schedule; plan index.
Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.

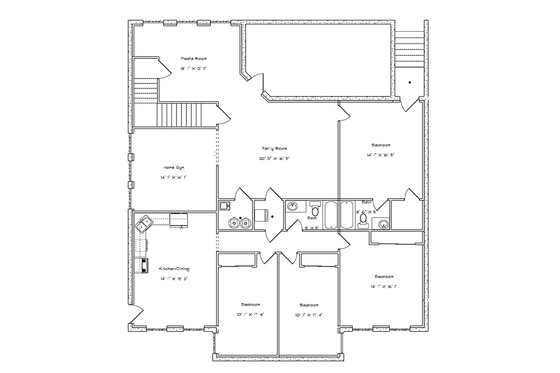

Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

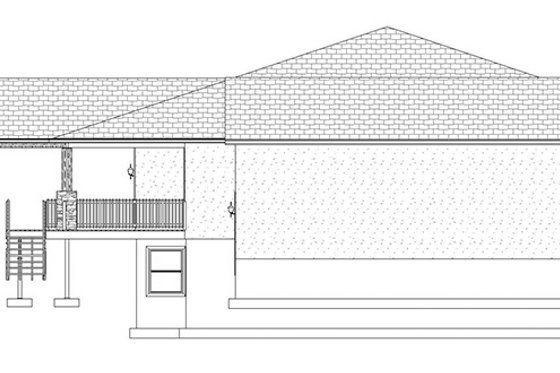

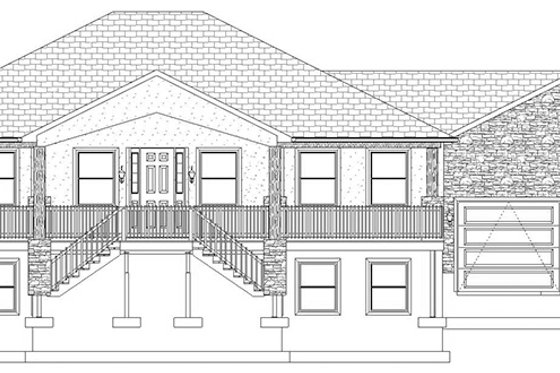

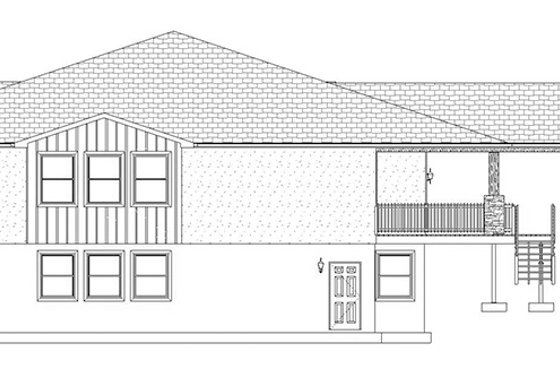

Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): Sectional details showing room and attached exterior details, floor-to-floor heights.
Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. with a legend.
Detail Sheet(s): Roof vents, heel truss, soffit/ridge vents, stair framing, fasteners and connectors, flashing and air sealing (reference).
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Will typically show joist direction, stair opening, bearing walls.
Wall Section(s): Sectionals showing wall types and details.
Energy Guidelines: Climate zone estimations by component; R-values, U-factors, SHGC, air barrier & insulation installation criteria table.

Note: Printed sets for this plan may have a delay. Please call to confirm delivery timeframe.

See a Sample Plan Set
