Plan 25-4614

Photographs may show modified designs.
Plan 25-4614

Plan Description


This brick and stone housing project includes three units in addition to a 426 square foot two-car garage. Behind a common entrance, each unit has its own private entrance and the floor layout is different in each dwelling. The total living space is 5,675 square feet. One of the three units is located in the basement and includes a bathroom with a laundry area, a U-shaped kitchen, a dining room and a living room, as well as two bedrooms. The two other units occupy the ground floor and the upper floor. The one on the left is smaller than the one on the right. The unit located in the right part of the house has a den, a powder room, a cellar and a workshop in the basement. On the ground floor, it includes a closed entrance hall with a closet, a powder room, a laundry room, a large kitchen with a breakfast nook, and a large open living and dining room. The upper floor has a bathroom with two sinks, two bedrooms and a master bedroom with French doors, a private bathroom and two large walk-in closets. The ground floor of the unit located in the left part of the house includes a powder room, a living room, a U-shaped kitchen, and a dining room. The upper floor includes a bathroom, a large laundry area and two bedrooms.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

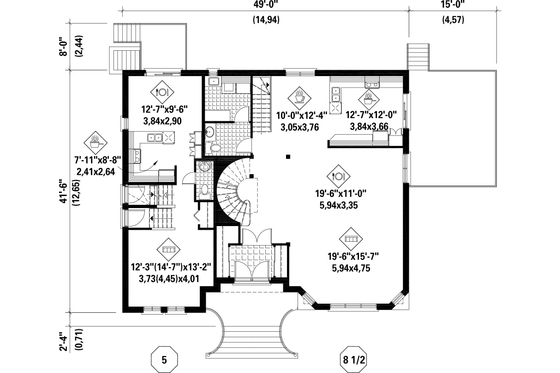

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Floor Plan - Lower Floor Plan

Reverse

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Floor Plan - Lower Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 7
Baths : 4
Stories: 2
Garages: 2

Dimension

Depth : 41' 6"
Height : 36' 5"
Width : 64'

Area

Total : 5675 sq/ft
Basement : 0 sq/ft
Garage : 426 sq/ft
Lower Floor : 1771 sq/ft
Main Floor : 1944 sq/ft
Upper Floor : 1960 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Roof Framing : Truss
Roof Load : 50

Exterior Wall Framing

Exterior Wall Finish : Brick Stone
Framing : Wood - 2 x 6
Insulation : R20

What's included in this plan set


See a sample plan set
  • Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
  • Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
  • Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
  • Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
  • *See important information before purchasing

    Pricing


    Plan Options

    5 Copy Set

    $1675.00
    5 printed plan sets mailed to you.

    8 Copy Set

    $1720.00
    8 printed plan sets mailed to you.

    PDF Set

    Best Value!
    $1760.00
    PDF plan sets are best for fast electronic delivery and inexpensive local printing.

    CAD Set

    $2410.00
    For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

    Reproducible Set

    $3350.00
    For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
    Foundation Options

    Basement

    $0.00
    Ideal for level lot, lower level of home partially or fully underground.

    *Options with a fee may take time to prepare. Please call to confirm.

    Additional Options:

    Right-Reading Reverse

    $150.00
    Choose this option to reverse your plans and to have the text and dimensions readable.

    Additional Construction Sets

    $50.00
    Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

    Audio Video Design

    $100.00
    Receive an overlay sheet with suggested placement of audio and video components.

    Construction Guide

    $39.00
    Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

    Lighting Design

    $200.00
    Receive an overlay sheet with suggested placement of lighting fixtures.

    Material List

    $180.00
    A list of building supplies needed to construct the infrastructure of your new house.

    Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
