This housing project consists of three units, one per floor, and provides 1,903 square feet each of total living space for the basement and the ground floor, and 1,883 square feet for the upper floor. Each unit has a private balcony in the front and the back. The units located on the ground floor and the upper floor each have a private entrance at the front of the house, and the basement unit has a private entrance on the side. The floor layout is identical in all three units.
Each unit has an entrance hall with a closet, a large bathroom with two sinks, a laundry room, a U-shaped kitchen with a lunch counter, an open living and dining room, and three bedrooms including a master bedroom with a spacious walk-in closet and a private access to the bathroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

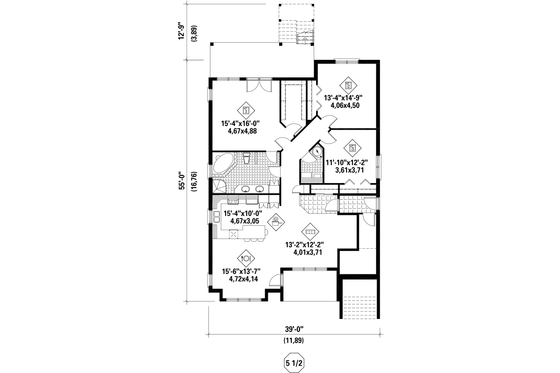

Floor Plan - Main Floor Plan

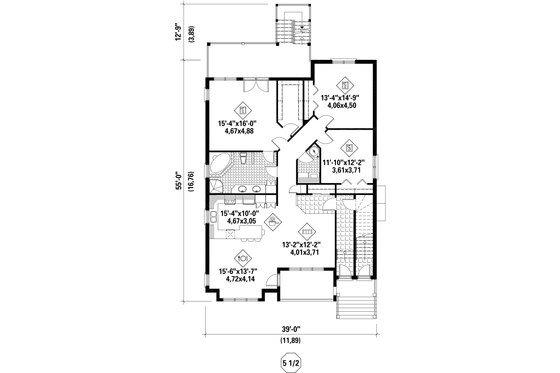

Floor Plan - Upper Floor Plan
Floor Plan - Lower Floor Plan

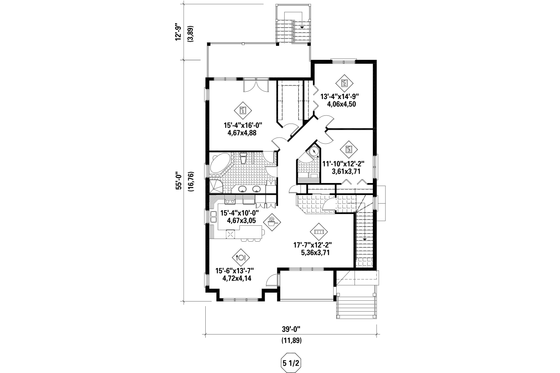

Floor Plan - Other Floor Plan
Full Specs & Features
Depth : 55'
Height : 46' 2"
Basement : 0 sq/ft
Garage : 0 sq/ft
Lower Floor : 1903 sq/ft
Main Floor : 1903 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 10/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 10/12
Exterior Wall Framing
Exterior Wall Finish : Brick Siding Stone
Framing : Wood - 2 x 6
What's included in this plan set
See a sample plan set
*See important information before purchasing
Four detailed exterior elevations showing the final appearance of each side of the house.
Different isometric views with dimensions as well as relevant information to build the foundations.
A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Ideal for level lot, lower level of home partially or fully underground.
