Ranch House Plan 1060-27 5705 Sq Ft, 6 Bed, 4.5 Bath, 1 Floor, 4 Garage

Name: Ranch Style House Plan - 6 Beds 4.5 Baths 5705 Sq/Ft Plan #1060-27
Brand: Houseplans.com
SKU: 1060-27
Price: 1600.00 USD
Availability: InStock

Floor Plans

View All Images

Floor Plans

Get Expert Advice

Overview
Full Specs & Features
What's Included
FAQs
More Plans

Key Specs

6
Beds
4.5
Baths
1
Floors
4
Garages
5705
Square Feet

Perfect for entertaining, this home has a chef style kitchen with a mammoth pantry and opens out to both the family room and dining area. The main level also has a beautiful master suite and an enormous mud/laundry room is just off the garage entrance. The basement is configured for versatility, with an potential in-law or guest suite. There is another full kitchen, a spacious bonus room under the garage and an additional guest suite.

Questions on this plan?

New to the process and looking for some help to kick things off? Let us know a bit about your plans and we’ll be happy to help.

Or call

1-800-913-2350

Ranch Plan 1060-27

Starts at $1250.00,

Plan Type Options

Foundation Options

Framing Options

Optional Add-Ons

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$495.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials directly onto your PDF (foundation to rooftop showing interior and exterior materials). Comprehensive material lists will be delivered 5-7 days after your plan order. Note, this product is only available with a PDF plan purchase.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

1-800-913-2350

Questions on this plan?

New to the process and looking for some help to kick things off? Let us know a bit about your plans and we’ll be happy to help.

Or call

1-800-913-2350

Budget & Customization Tools

Customize this Plan

Tell us about your desired changes and we can prepare an estimate.

Cost to Build Report

A personalized estimate based on your location, plan, & materials. / FAQ

Residential Construction Guide

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Full specs & Features

Basic Features

Bedrooms: 6

Baths: 4.5

Stories: 1

Garages: 4

Dimension

Depth: 64'

Height: 20' 3"

Width: 76' 3"

Area

Total: 5705 sq/ft

Basement Living: 3568 sq/ft

First Floor: 2137 sq/ft height 9'

Garage: 1597 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch: 5:12

Roof Framing: Truss

Roof Type: Asphalt

Exterior Wall Framing

Exterior Wall Finish: Brick

Framing: Wood - 2x6

Bedroom Features

Formal Living Room / Parlor

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Media Room

Mud Room

Open Floor Plan

Garage Features

Front Entry Garage

Tandem Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bath 2:

59 sq/ft width 5' x depth 11' 9"

Bath 3:

89 sq/ft width 12' 4" x depth 7' 3"

Bath 4:

66 sq/ft width 10' x depth 6' 7"

Bedroom 2:

109 sq/ft width 11' 7" x depth 9' 5"

Bedroom 3:

160 sq/ft width 13' 7" x depth 11' 9"

Bedroom 4:

160 sq/ft width 13' 7" x depth 11' 9"

Bedroom 5:

120 sq/ft width 10' 1" x depth 11' 11"

Bedroom 6:

185 sq/ft width 15' 8" x depth 11' 10"

Bedroom 6 Closet:

50 sq/ft width 10' x depth 5'

Bonus Room:

1076 sq/ft width 40' 1" x depth 26' 10"

Covered Front Porch:

44 sq/ft

Covered Rear Porch:

355 sq/ft

Dining Room:

200 sq/ft width 17' x depth 11' 9"

Entry:

58 sq/ft width 5' 9" x depth 10' 1"

Family Room:

381 sq/ft width 22' x depth 17' 3"

Formal Living Room:

125 sq/ft width 11' 3" x depth 11' 1"

Garage:

1597 sq/ft width 40' 1" x depth 44' 10"

Great Room:

682 sq/ft width 39' 4" x depth 17' 4"

Kitchen:

294 sq/ft width 17' x depth 17' 3"

Laundry/ Mud Room:

218 sq/ft width 11' 3" x depth 19' 5"

Master Closet:

67 sq/ft width 5' 9" x depth 11' 8"

Master Bath:

140 sq/ft width 12' x depth 11' 8"

Master Bedroom:

199 sq/ft width 16' 7" x depth 12'

Mechanical:

95 sq/ft width 11' 3" x depth 8' 5"

Pantry:

63 sq/ft width 10' x depth 6' 4"

Vault:

32 sq/ft width 7' 6" x depth 4' 4"

What's Included

Cover Sheet: General Notes for framing, plumbing, electrical, window/egress, concrete, fastener schedule; plan index.
Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.

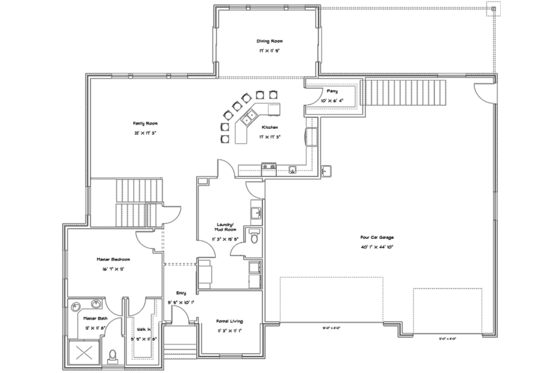

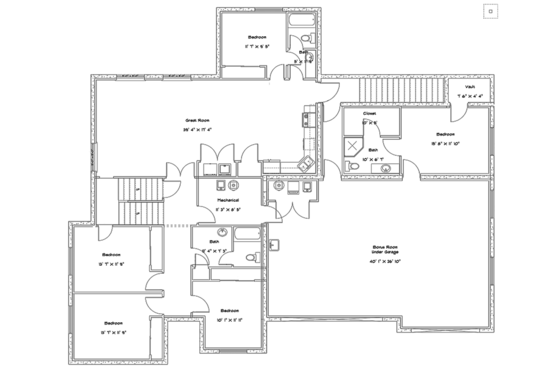

Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

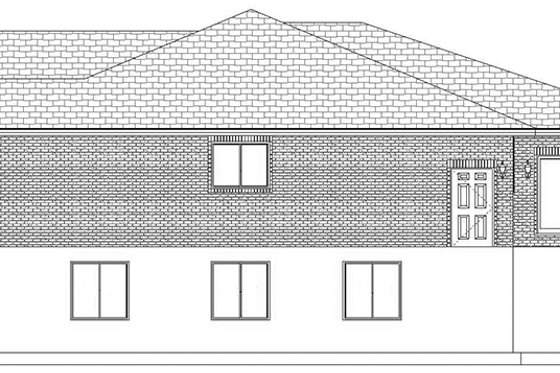

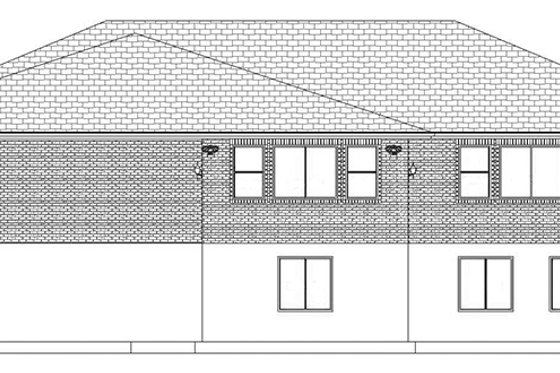

Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): Sectional details showing room and attached exterior details, floor-to-floor heights.
Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. with a legend.
Detail Sheet(s): Roof vents, heel truss, soffit/ridge vents, stair framing, fasteners and connectors, flashing and air sealing (reference).
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Will typically show joist direction, stair opening, bearing walls.
Wall Section(s): Sectionals showing wall types and details.
Energy Guidelines: Climate zone estimations by component; R-values, U-factors, SHGC, air barrier & insulation installation criteria table.

Note: Printed sets for this plan may have a delay. Please call to confirm delivery timeframe.

See a Sample Plan Set

FAQs

Are designs on Houseplans ready to submit to my building department for permitting?

It depends on where you're building. Our plans contain enough information for a professional builder to construct your home, but your local government may require additional information before permitting. We strongly advise that you talk with your builder before you get started. If you are building for yourself, we recommend visiting your local building department to start your diligence. Read more here.

Can I make changes to a plan?

Absolutely! Our modification service allows you to customize almost anything - whether it's adding an extra garage bay, adjusting square footage, changing the roof pitch, or more, the plan modification service is a great value and can be completed quickly. Additionally, if you purchase an electronic plan set (PDF or CAD), you may have the option to make changes locally. CAD files offer the most flexibility for custom edits. Just let us know what you're thinking, and we’ll provide an estimate and timeframe to get started. Learn more here.

How much does a house cost to build?

Find out! Build costs vary based on the size of the home, materials used, and local rates for goods and labor. Our Cost to Build report is a great way to get some basic costs dialed in before you order your plans. Just plug in your postal code, select your desired construction quality, and we'll calculate for you.

Learn more about Cost to Build reports here.

Can I trust Houseplans?

Founded in 2004, Houseplans works with hundreds of architects and designers to offer their plans at a fraction of the price of custom design. Houseplans has an "Excellent" rating on TrustPilot.
