Whether located by a lake or surrounded by mountains, this small cottage will delight its occupants. The house is 24 feet wide by 24 feet deep and provides 576 square feet of living space. The home includes a kitchen, an open living and kitchen area with cathedral ceilings and a fireplace, a bathroom and one bedroom.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

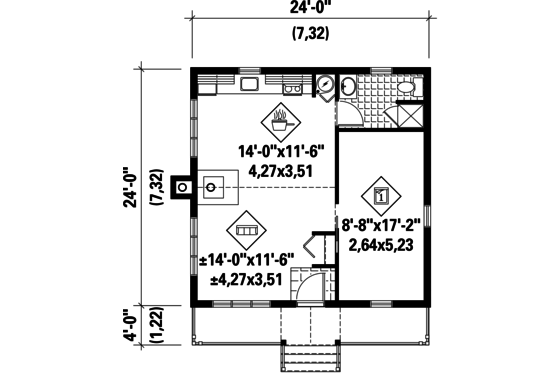

Floor Plan - Main Floor
Full Specs & Features
Depth : 24'
Height : 22' 4"
Basement : 0 sq/ft
Garage : 0 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 576 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 6/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2 x 6
