Plan #126-165

Key Specs


  • 5769 sq ft

  • 3 Bedrooms

  • 2.5 Bathrooms

  • 2 Floors

  • 2 Garage

Plan Description

This townhouse complex features an attractive and modern design, each unit having a master bedroom with walk-in closet, two more full size bedrooms, an open living area and a garage. Floor Areas: Main Floor: 2125 sq. ft. (Units A & D: 513 sq.ft. Units B & C: 541 sq.ft.) Second Floor: 3644 sq. ft. (Units A & D: 936 sq.ft. Units B & C: 885 sq.ft.) Garage Area: 1505 sq.ft. (Units A & D: 459 sq.ft. Units B & C: 294 sq.ft.)
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

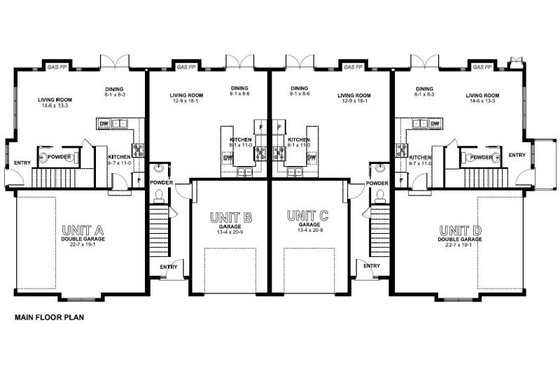

Floor Plan - Main Floor Plan
Traditional Style House Plan - 3 Beds 2.5 Baths 5769 Sq/Ft Plan #126-165 Floor Plan - Main Floor Plan - Houseplans.com
Floor Plan - Upper Floor Plan
Traditional Style House Plan - 3 Beds 2.5 Baths 5769 Sq/Ft Plan #126-165 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Baths : 2.5
Garage Stalls : 2
Bedrooms : 3
Stories : 2

Dimension

Height : 31'
Width : 97'
Depth : 43'

Area

Garage Sq Ft : 1505 sq ft
Upper Floor Sq Ft : 3644 sq ft
Main Floor Sq Ft : 2125 sq ft
Total Sq Ft : 5769 sq ft *
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling Ft : 10'
Main Ceiling Ft : 9'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 65

Exterior Wall Framing

Framing : 2"x6"
Exterior Wall Finish : Hardboard & Cultured Stone
Insulation : R22

Bedroom Features

Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Peninsula Eating Bar
Breakfast Nook

Additional Room Features

Great Room Living Room
Upstairs Laundry

Garage Features

Garage Under
Front Entry Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Code Compliance

Nbcc
Irc 2006

Structural Information Provided

Structural 1st Floor Framing
Structural Calculations
Foundation Drawing
Structural 2nd Floor Framing
Structural Roof Framing
Structural Notes

What's included in this plan set

See a sample plan set

  • Floor Plans Including electrical
  • Foundation Plan
  • Cross Sections and other detail sections when required
  • Cabinet and Stair Details
  • Exterior Elevations - All four sides
  • Cover Page with artists rendering
  • Misc. Construction and Code Notes
*See important information before purchasing
