Plan 1066-56

Photographs may show modified designs.
Plan 1066-56

Key Specs

sq ft





Plan Description

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

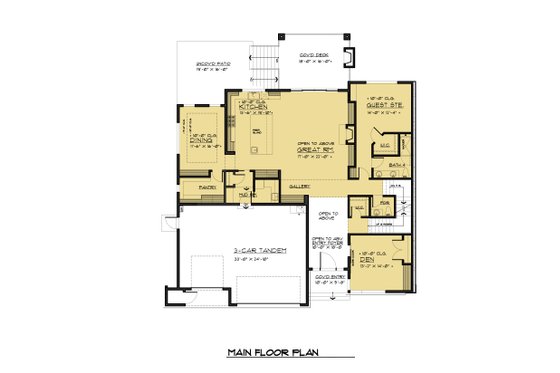

Floor Plan - Main Floor Plan

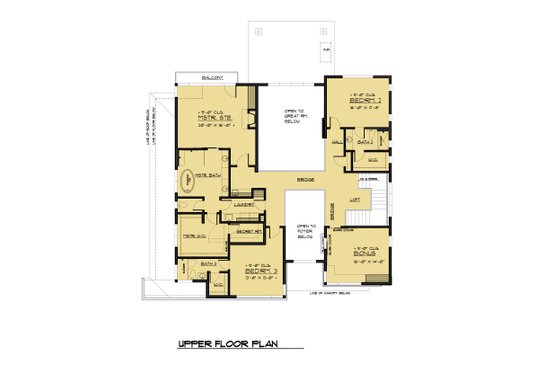

Floor Plan - Upper Floor Plan

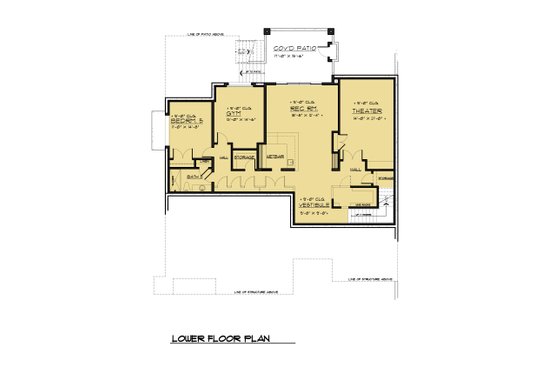

Floor Plan - Lower Floor Plan


Full Specs & Features

Basic Features

Bedrooms : 5
Baths : 5.5
Stories: 3
Garages: 1


Depth : 68' 6"
Height : 30'
Width : 63'


Total : 6302 sq/ft
Decks : 251 sq/ft
Garage : 743 sq/ft
Lower Floor : 1864 sq/ft
Main Floor : 2248 sq/ft
Patios : 516 sq/ft
Porch : 57 sq/ft
Upper Floor : 2190 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Ceiling Details : Entry foyer ceiling is open to above.
Garage Ceiling : 11' 6"
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'


Primary Pitch : 4/12
Roof Framing : Trusses
Roof Load : 25 PSF
Roof Type : Hip / Some Flat

Exterior Wall Framing

Exterior Wall Finish : Siding and Stone
Framing : 2X6
Insulation : R21

Bedroom Features

Lower Level Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Play Flex Room
Wet Bar
Wine Cellar

Garage Features

Front Entry Garage
Split Garage
Tandem Garage

Outdoor Spaces

Covered Front Porch


Bedroom 2:

width 16' x depth 12' 8"

Bedroom 3:

width 13' 8" x depth 13'

Bedroom 5:

width 11' x depth 14' 8"


width 16' x depth 14'


width 13' 2" x depth 14'


width 11' 6" x depth 16'

Entry porch:

width 10' x depth 5' 8"


width 10' x depth 18'

Garage 3 car:

width 33' x depth 24' 10"

Great Room:

width 17' x depth 22'

Guest Suite:

width 14' x depth 12' 4"


width 13' x depth 14' 6"


width 13' 6" x depth 19' 10"

Master Suite:

width 20' x depth 16'

Rear Covered Deck:

width 18' x depth 16'

Rear Uncovered patio:

width 19' x depth 16'

Rec Room:

width 18' 8" x depth 12' 4"


width 14' x depth 21'


width 9' 8" x depth 9' 8"

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing


Plan Options


Best Value!
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

5 printed plan sets mailed to you.

8 Copy Set

8 printed plan sets mailed to you.

Reproducible Set

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set

One printed set for bidding purposes only. Not a legal building set for construction.
Foundation Options


Ideal for level lot, single layer concrete poured directly on grade.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Wood 2x6

Wood 2x6

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Right-Reading Reverse

Choose this option to reverse your plans and to have the text and dimensions readable.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

We offer a 90% credit when you upgrade from a set, that is not for construction, to a 5-Copy set (or greater).
