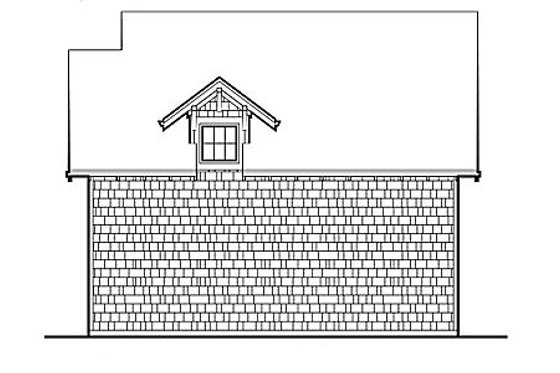

Craftsman Style House Plan - 1 Beds 0 Baths 633 Sq/Ft Plan #48-155 Exterior - Rear Elevation

Plan 48-155

Photographs may show modified designs.

Select Plan Set Options What's included?

Select Foundation Options

	Additional Construction Sets $40.00/each
	Audio Video Design	$100.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Home Furniture Planner	$19.00
	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
	Lighting Design	$100.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Right-Reading Reverse	$150.00
	Choose this option to reverse your plans and to have the text and dimensions readable.

Subtotal

$779.00

Or order by phone:

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Questions?

Please call me ASAP.

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Phone: 1-800-913-2350

Hours Mon‑Fri, 9 am‑8:30 pm (EST)

Plan 48-155

Key Specs

633
sq ft

1
Beds

0
Baths

2
Floors

2
Garages

Plan Description

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify This Plan

Floor Plans

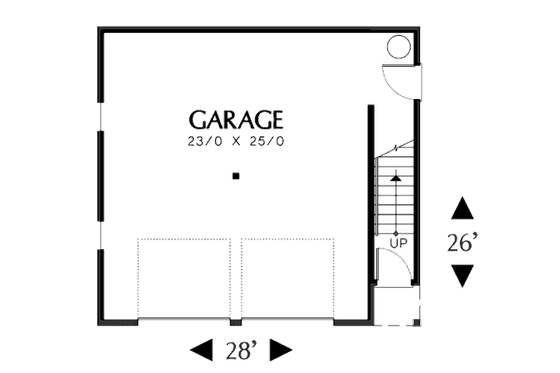

Floor Plan - Main Floor Plan

Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 1

Baths : 0

Stories: 2

Garages: 2

Dimension

Depth : 26'

Height : 25'

Width : 28'

Area

Total : 633 sq/ft

Second Floor: 633 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Shingle

Framing : 2"x6"

Bedroom Features

Upstairs Master Bedrooms

Additional Room Features

Storage Area

Upstairs Laundry

Garage Features

Garage Under

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom:

120 sq/ft width 12' x depth 10'

Garage:

575 sq/ft width 23' x depth 25'

Living Room:

203 sq/ft width 16' 6" x depth 12' 4"

What's included in this plan set

See a sample plan set

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.
