Very popular in the country, townhouses are an obvious choice for many weekend cottage owners since this kind of dwelling combines the privacy of a single-family house with the low-cost of a condominium. You get the best of both worlds!
This building includes three large and comfortable units totalizing over 2,000 square feet each. The corner units are identical, but the middle one has a different layout: the kitchen is smaller, the entrance hall is bigger, and the location of the master bedroom is different.
The ground floor includes a living room, a kitchen, a dining room, a powder room and a vestibule.
The second floor includes a bathroom and three bedrooms.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

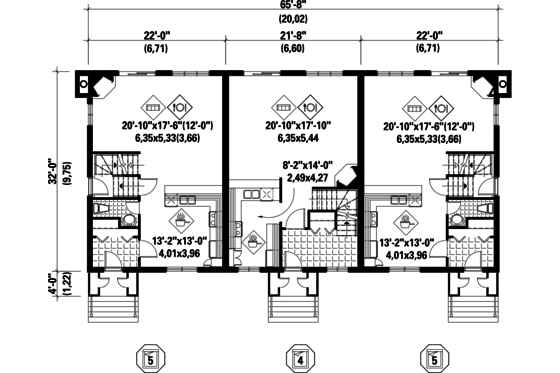

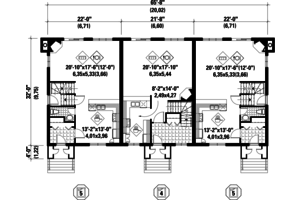

Floor Plan - Main Floor

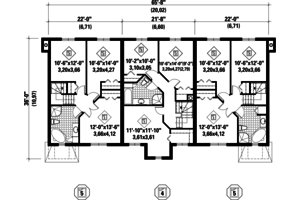

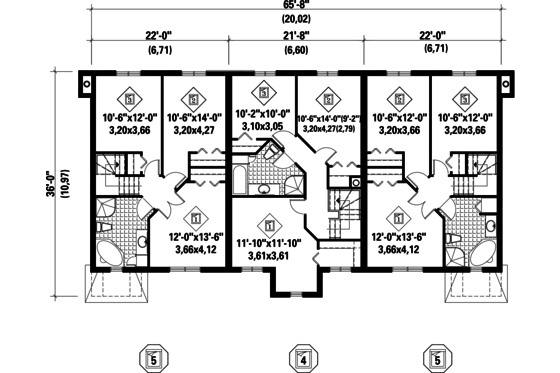

Floor Plan - Upper Floor
Floor Plan - Lower Floor
Full Specs & Features
Depth : 32'
Height : 32' 3"
Basement : 0 sq/ft
Garage : 0 sq/ft
Lower Floor : 2102 sq/ft
Main Floor : 2102 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 7/12
Roof Framing : Truss
Roof Load : 50
Secondary Pitch : 12/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2 x 6
What's included in this plan set
See a sample plan set
Four detailed exterior elevations showing the final appearance of each side of the house.
Different isometric views with dimensions as well as relevant information to build the foundations.
A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
*See important information before purchasing
5 Copy Set
5 printed plan sets mailed to you.
8 Copy Set
8 printed plan sets mailed to you.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
*Options with a fee may take time to prepare. Please call to confirm.
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Receive an overlay sheet with suggested placement of lighting fixtures.
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
