Plan 17-2366

Photographs may show modified designs.
Plan 17-2366

Key Specs


6696
sq ft

6
Beds

6.5
Baths

2
Floors

3
Garages

Plan Description


This home is filled with amenities and luxuries throughout. The massive great room has a crisscross diagonal pattern of exposed timber beams in the ceiling and a huge fireplace. 2 sets of French doors open to an incredible covered veranda. Relaxation is guaranteed in your enormous master suite with a windowed corner and private access to a covered porch. And that relaxing continues into the master bathroom where you?ll find a raised whirlpool tub, a large corner glass shower with seating and an enormous walk-in closet with his and hers sides. The master bathroom even has a coffee center to help you get going in the morning. The kitchen is a cook?s dream with a separate refrigerator and freezer, double ovens, and a large island with a cook top, additional sink, and ice maker. Plenty of counter top and the large pass-thru to the great room make this perfect for entertaining. A hearth room is open to the kitchen and has a fireplace, built-ins, a breakfast area, and access to a grilling porch. Guests are sure to enjoy their bedroom which features a unique 45 degree angle design, a full bathroom, and a walk-in closet. Entertaining will be easy upstairs as well in the huge game room and continues through the 2 sets of French doors out onto the upper covered veranda featuring a fireplace. You can take pride when you show off the incredible home theater with stadium seating. 3 more bedrooms are also upstairs, each one with ample walk-in closets and full bathrooms. Down a corridor that features a computer center and more closet space is a hobby/bonus room over the garage. Last but definitely least, this house even has an elevator. ROOM DIMENSIONS: MAIN LEVEL Entry 8/0x6/0 Foyer 7/4x7/8 Dining Room 14/4x16/10 Great Room 22/0x22/0 Kitchen 15/4x19/10 Breakfast 8/6x11/2 Hearth Room 15/4x14/0 Guest Bedroom 15/4x15/10 Guest Bathroom 10/10x9/4 Powder near Laundry 6/8x9/2 Laundry Room 7/8x13/2 Porte Cochere 19/0x19/4 2 Car Garage 23/4x23/4 Storage between garages 13/6x12/4 1 cCar Garage 11/4x23/4 Office Study 14/4x16/10 Bath to right of study 7/8x13/0 Bedroom #2 15/4x15/2 Master Suite 29/2x27/6 Master Bath 16/6x21/0 Master Closet 9/10x1`3/0 Covered Veranda 22/0x21/0 12' Grilling Porch 12' Covered Porch UPPER LEVEL Game Room 22/0x22/0 Covered Veranda 22/0x21/0 Home Theater 23/8x14/8 Bedroom #3 14/4X13/2 Bath 7/8x13/3 Bedroom #4 14/4x13/2 Bath 7/8x13/2 Bedroom #5 16/4x13/0 Bath 5/0x13/0
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

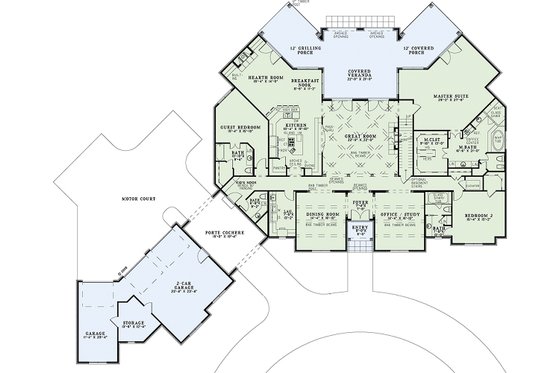

Floor Plan - Main Floor Plan

Reverse

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 6
Baths : 6.5
Stories: 2
Garages: 3

Dimension

Depth : 105'
Height : 39'
Width : 126'

Area

Total : 6696 sq/ft
Bonus : 289 sq/ft
Garage : 1342 sq/ft
Main Floor : 4140 sq/ft
Porch : 1410 sq/ft
Upper Floor : 2558 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 16:12
Roof Framing : Conventional Frame
Roof Load : 45 psf
Roof Type : shingle

Exterior Wall Framing

Framing : 2"x4"
Insulation : Exterior R-13, Ceiling R-30, Floor R-19

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Media Room
Storage Area
Workshop

Garage Features

Rear Entry Garage
Split Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Balcony
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch

What's included in this plan set


See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1170.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set

$1270.00
5 printed plan sets mailed to you.

CAD Set

$2540.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Basement

$250.00
Ideal for level lot, lower level of home partially or fully underground.

Daylight Basement

$250.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
