Plan 84-499

Photographs may show modified designs.
Plan 84-499

Key Specs


697
sq ft

1
Beds

1
Baths

1
Floors

0
Garages

Plan Description


This plan is perfect for a weekend getaway, empty-nester, or young professional. Charming bungalow elevation has a porch large enough for neighborhood visitors. Generous room sizes and storage provide lots of room for living.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

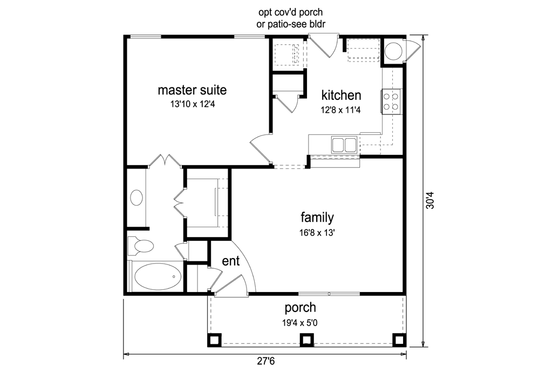

Floor Plan - Main Floor Plan

Reverse
Craftsman Floor Plan - Main Floor Plan Plan #84-499

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 1
Garages: 0

Dimension

Depth : 30' 4"
Height : 15' 8"
Width : 27' 6"

Area

Total : 697 sq/ft
First Floor: 697 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 8'

Roof

Primary Pitch : 6:12
Roof Framing : stick
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : 2"x4"

Bedroom Features

Walk In Closet

Kitchen Features

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Main Floor Laundry

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

More

Economical To Build
Empty Nester
Suited For Vacation Home

Code Compliance

Irc 2003

Rooms

Family Room:

216 sq/ft width 16' 8" x depth 13'

Kitchen:

143 sq/ft width 12' 8" x depth 11' 4"

Master Suite:

170 sq/ft width 13' 10" x depth 12' 4"

Porch - Front:

96 sq/ft width 19' 4" x depth 5'

What's included in this plan set


See a sample plan set
  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

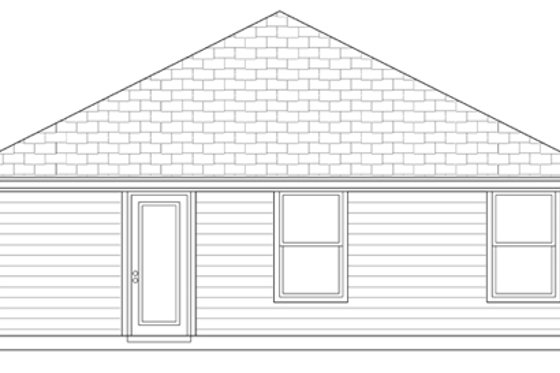

  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
